31Installation
6. Connect spray circuits to the housing feed throughs:
• Interconnect the spray circuits of the different nozzle grids (if more than on grid is present).
Interconnect spray circuits with same colour only.
• Connect spray circuits to the appropriate housing feed throughs.

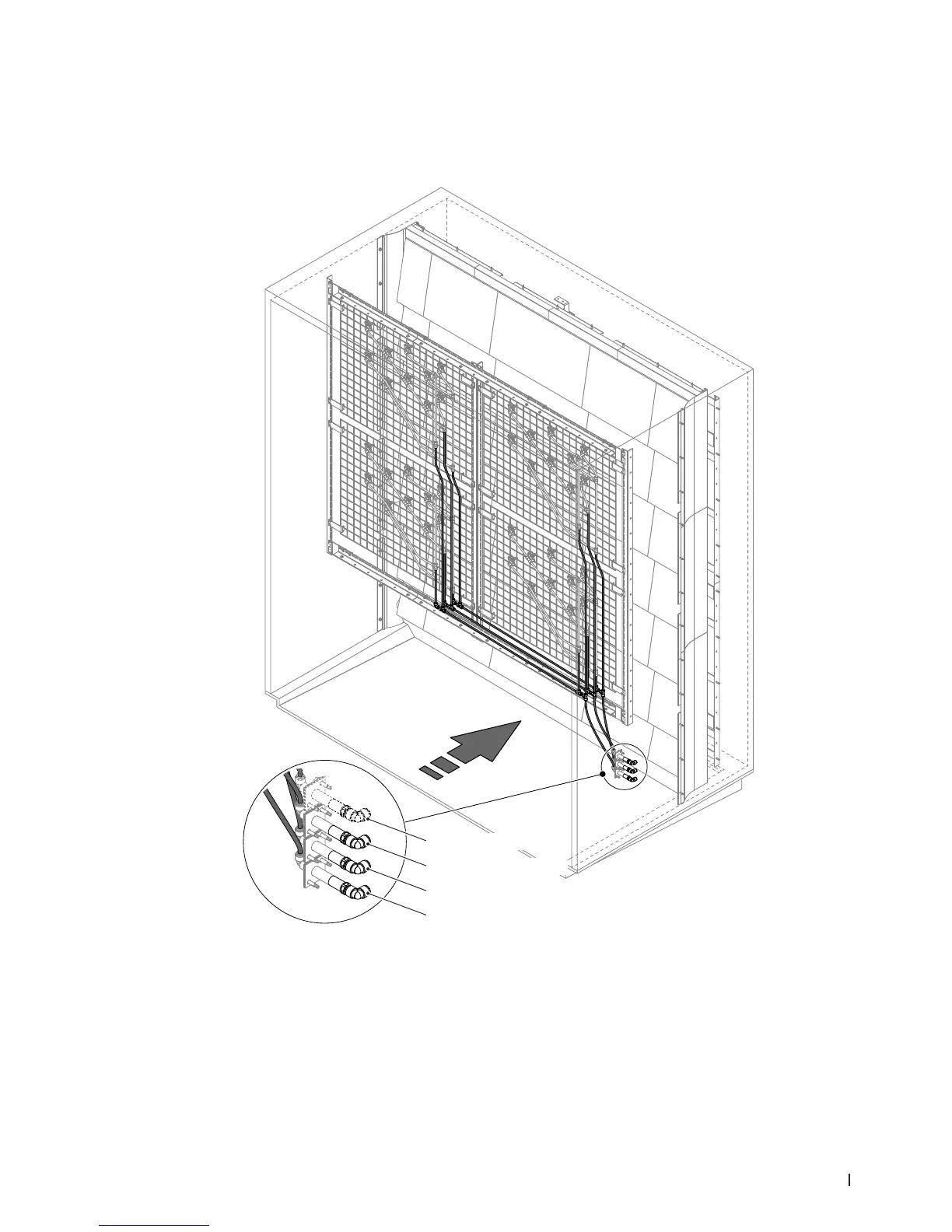

Abb. 20: Connect spray circuits to the housing feed throughs
Spray circuit 3 (yellow)
Spray circuit 4 (green)
Spray circuit 2 (blue)
Spray circuit 1 (red)
