33Installation
Mounting the central unit

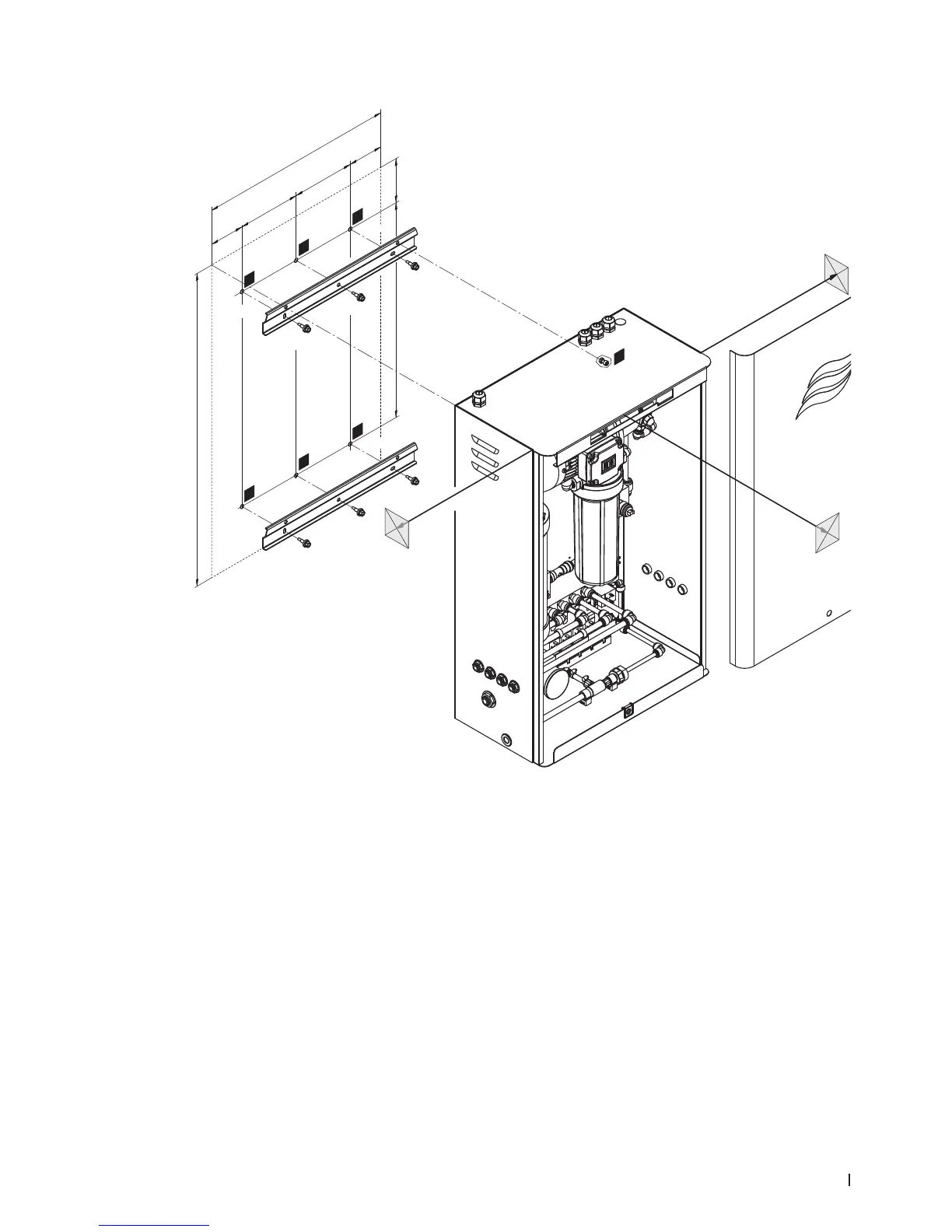

Abb. 21: Mounting the central unit - dimensions in mm (Inch)
Procedure
1. Mark the attachment points “A” for the two wall supports at the desired position with the help of a
spirit level.
2. Fix the wall supports with the self-tapping screws 6.3 x 25 mm supplied to the wall. Before tightening
the screws adjust wall supports horizontally using a spirit level.
3. Unlock the screw of the front panel of the control unit, then remove the front panel.
4. Hang up the central unit onto the wall supports. Then, x the unit to the upper wall support using the
screw “B” already inserted in the central unit on the upper right side.
5. Reattach the front panel and secure it with the screw.
800
(31.5")
112.5
(4.4")
550
(21.7")
160
90
(6.3
")
160
(6.3
")
(3.5
")
(3.5
")
90
500
(19.7
"
)
min. 400
(min. 15.7
"
)
min. 400
(min. 15.7
"
)
min. 600
(min. 23.6
"
)
A
A
A
A
A
A
B
Central unit
Weight: approx. 50 kg
Admissible ambient condition:
– Ambient temperature: 5 ... 40 °C
– Ambient humidity: max. 80 %rh, not condensing
– IP protection class: IP22
