35Installation
210
52.5
52.5
(8.3
")
(2.1
")
(2.1
")
315
(12.4
"
)
max. 1000
(max. 39.4
"
)
64.5
(2.5")
450
(17.7")
300
(11.8")
min. 200
(min. 7.9
"
)
min. 200
(min. 7.9
"
)
min. 600
(min. 23.6
"
)
A
A
A
A
B
B
Mounting the control unit
Electrical isolator
The electrical isolator (included in the delivery) must be mounted
in direct proximity of the control unit (max. distance 1 m) and in a
convenient height between 0.6 m and 1.9 m (recommended: 1.7 m).

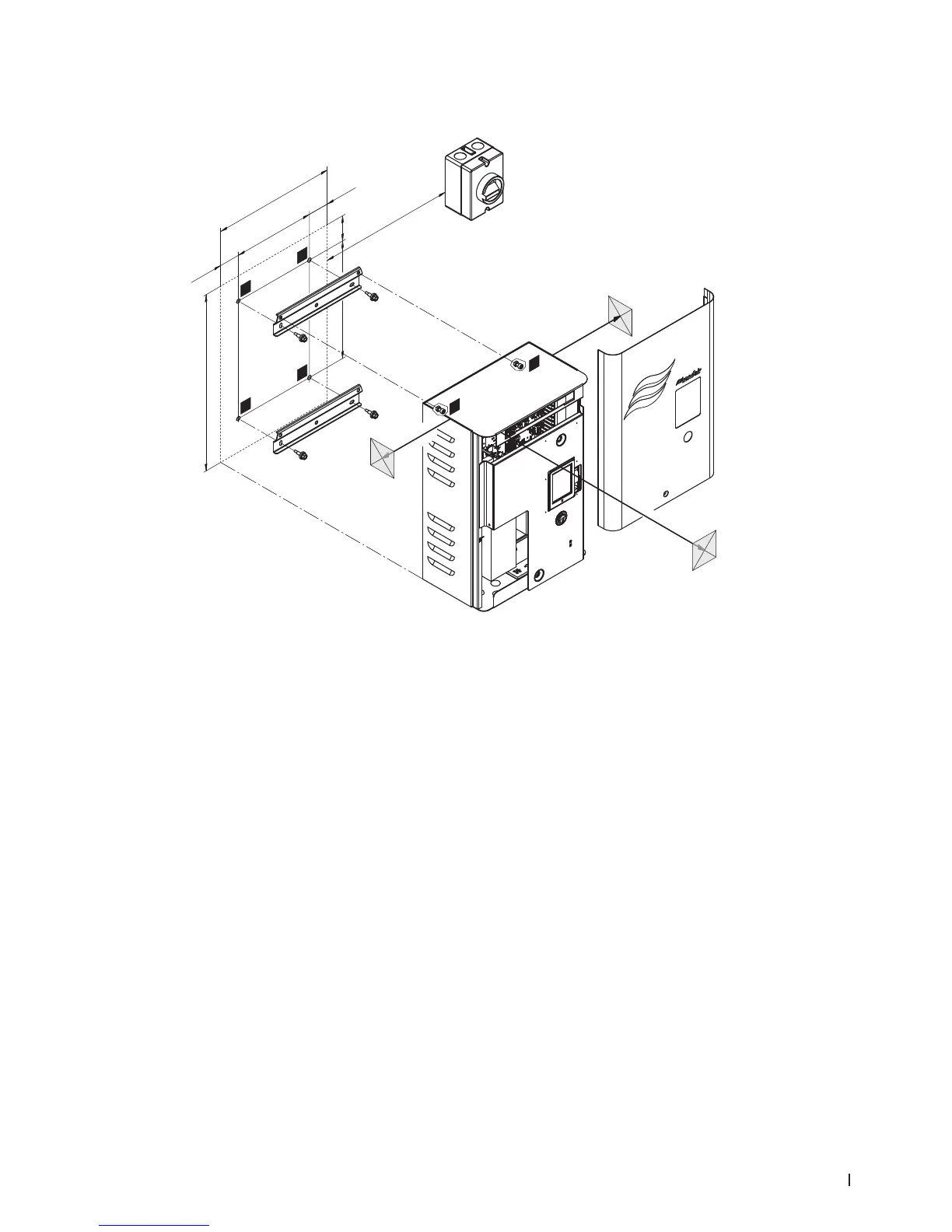

Abb. 22: Mounting the control unit - dimensions in mm (Inch)
Procedure
1. Mark the attachment points “A” for the two wall supports at the desired position with the help of a
spirit level.
2. Fix the wall supports with the self-tapping screws 6.3 x 25 mm supplied to the wall. Before tightening
the screws adjust wall supports horizontally using a spirit level.
3. Unlock the screw of the front panel of the control unit, then remove the front panel.
4. Hang up the control unit onto the wall supports. Then, x the unit to the upper wall support using the
screws “B” already inserted in the control unit.
5. Reattach the front panel and secure it with the screw.
Control unit
Weight control unit: approx.. 25 kg
Admissible ambient condition:
– Ambient temperature: 5 ... 40 °C
– Ambient humidity: max. 80 %rh,
not condensing
– IP protection class: IP22
