Conel CLEAR SOFT - Diagrams

77
10.3
DIAGRAMS

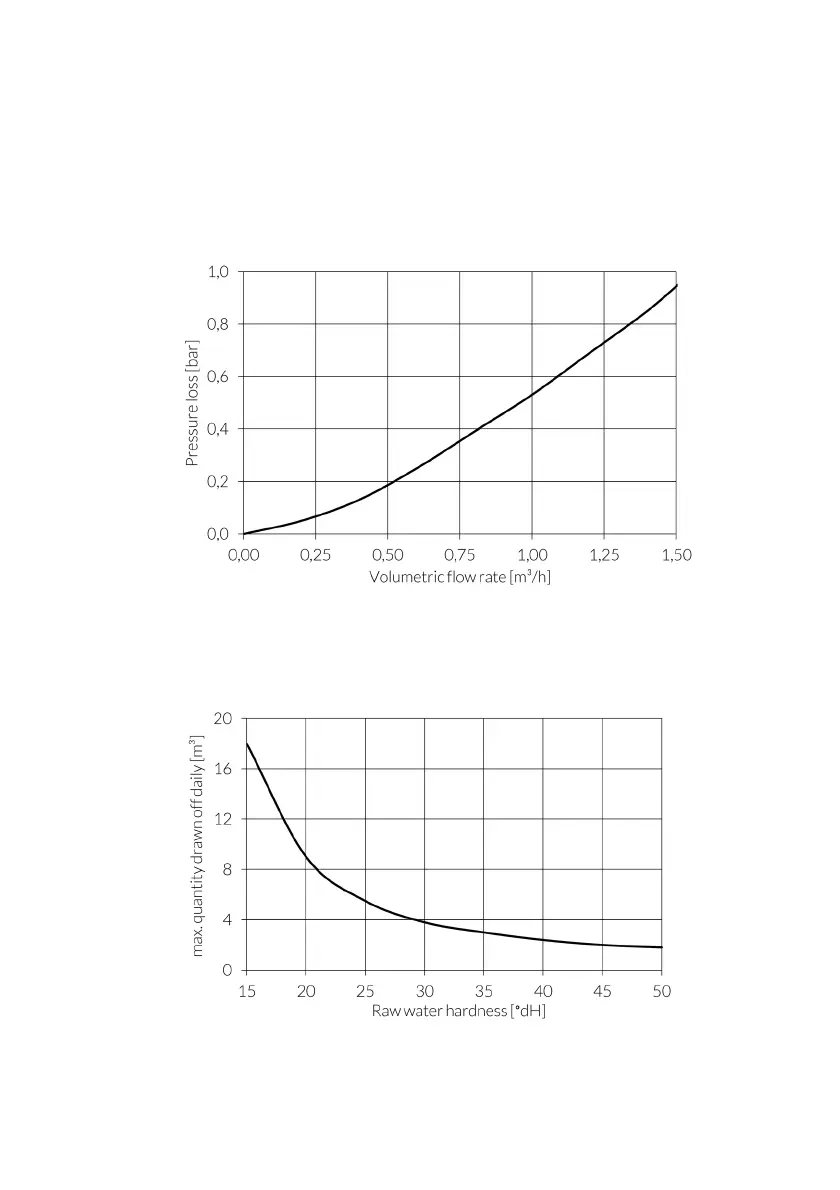

Fig. 12: Pressure loss in normal operating position
Fig. 13: Amount drawn off daily
Pressure loss in normal operating position (pos. 1) with a raw water hardness of 20 °dH and
a mixed water hardness of 8 °dH depending on the volumetric flow rate
Max. possible quantity drawn off daily depending on the raw water hardness and a mixed
water hardness of approx. 8 °dH
