INSTALLATION DIMENSIONS
The the built-in rotary flange may be mounted in both horizontal and vertical pipes.

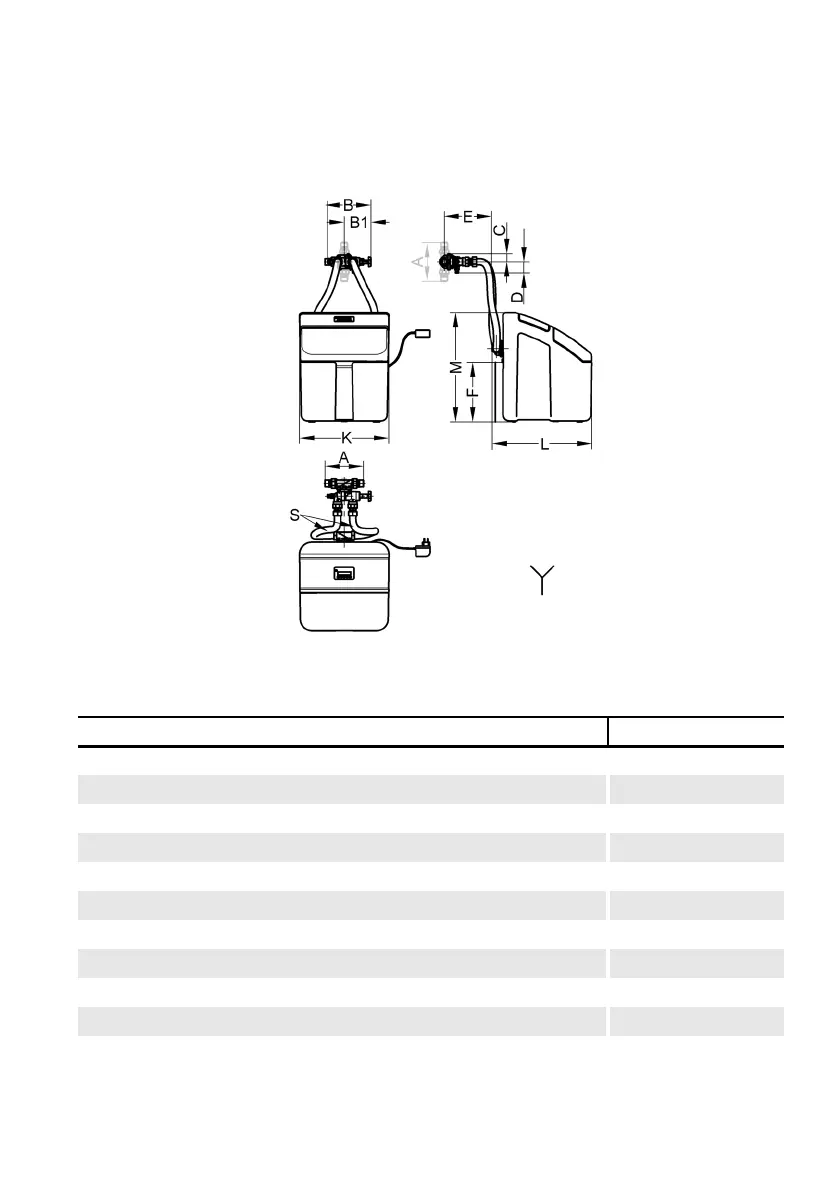

Fig. 16: Installation dimensions
Installation dimension CLEAR SOFT
A: Fitting length with screw connection 195
B: Width bypass valve JQU 220
B1: Width JQU Handwheel to connection centre 135
C: Height above pipe centre 40
D: Height below pipe centre 60
E: Depth to pipe centre 280
F: Height of the overflow connection 300
K: Width of the water softener 450
L: Depth of the water softener 500
M: Height of the water softener 550
S: Length of the armoured hoses 1000
All dimensions in [mm] (see fig. 16)
Y = sewer junction necessary
