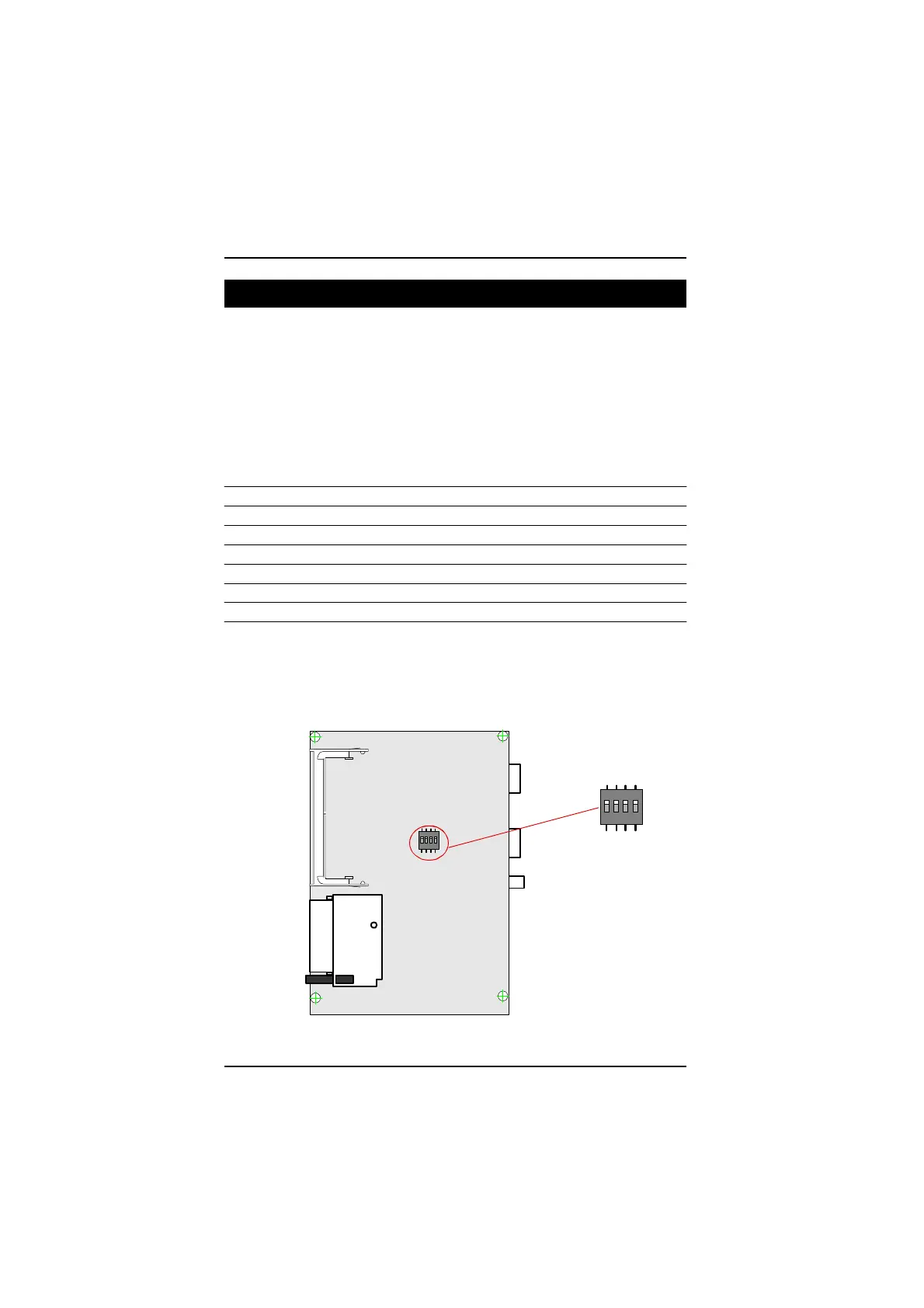

Flat Panel Configuration
Flat Panel Type Switch (JTLCD1)
The EmCORE-i612VLS/C400 provides a hardware switch to configure your
onboard VGA controller for usage with a variety of flat panel types.
Switch : JTLCD1
Type : onboard 4-port mini switch
Panel Type SW-1 SW-2 SW-3 SW-4
640 x 480 TFT ON ON ON ON
640 x 480 DSTN OFF ON ON ON
800 x 600 TFT (Default) ON OFF ON ON
800 x 600 DSTN OFF OFF ON ON
1024 x 768 TFT ON ON OFF ON
1024 x 768 DSTN OFF ON OFF ON
1280 x 1024 TFT ON OFF OFF ON
CS5530A-UCE
VS236AQ
NSC 2000
intel 815
ON
1 2 3 4
ON
1 2 3 4
