18 EmCORE-i612VLS/C400 User's Manual
Audio Interface

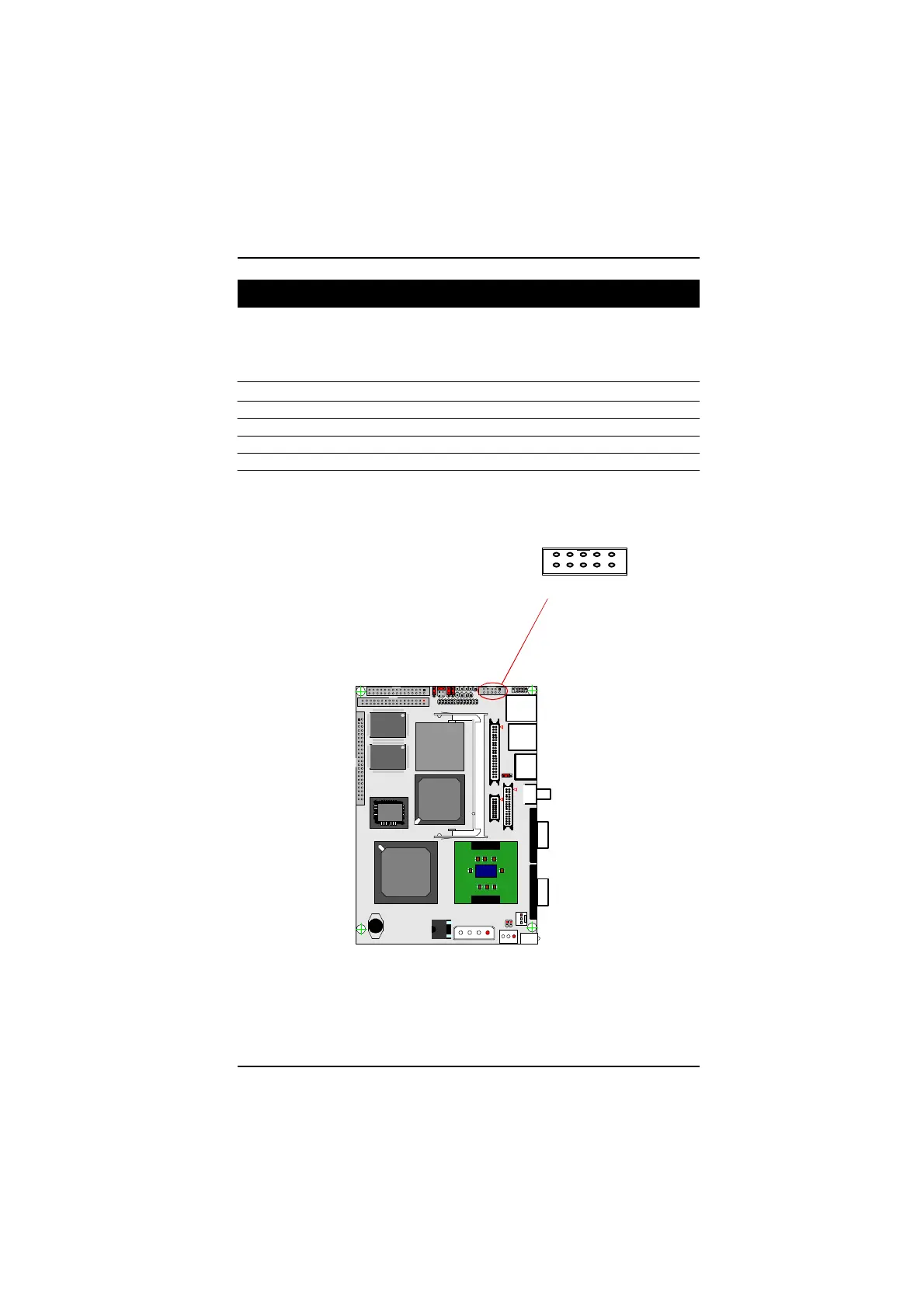

Connector : Audio1
Type : Onboard 10-pin header
Pin Description Pin Description
1 LINE IN LEFT 2 LINE IN RIGHT
3 GND 4 GND
5 MIC 6 NC
7 GND 8 GND
9 SPEAKER LEFT 10 SPEAKER RIGHT
10
9
2
1
Audio1
