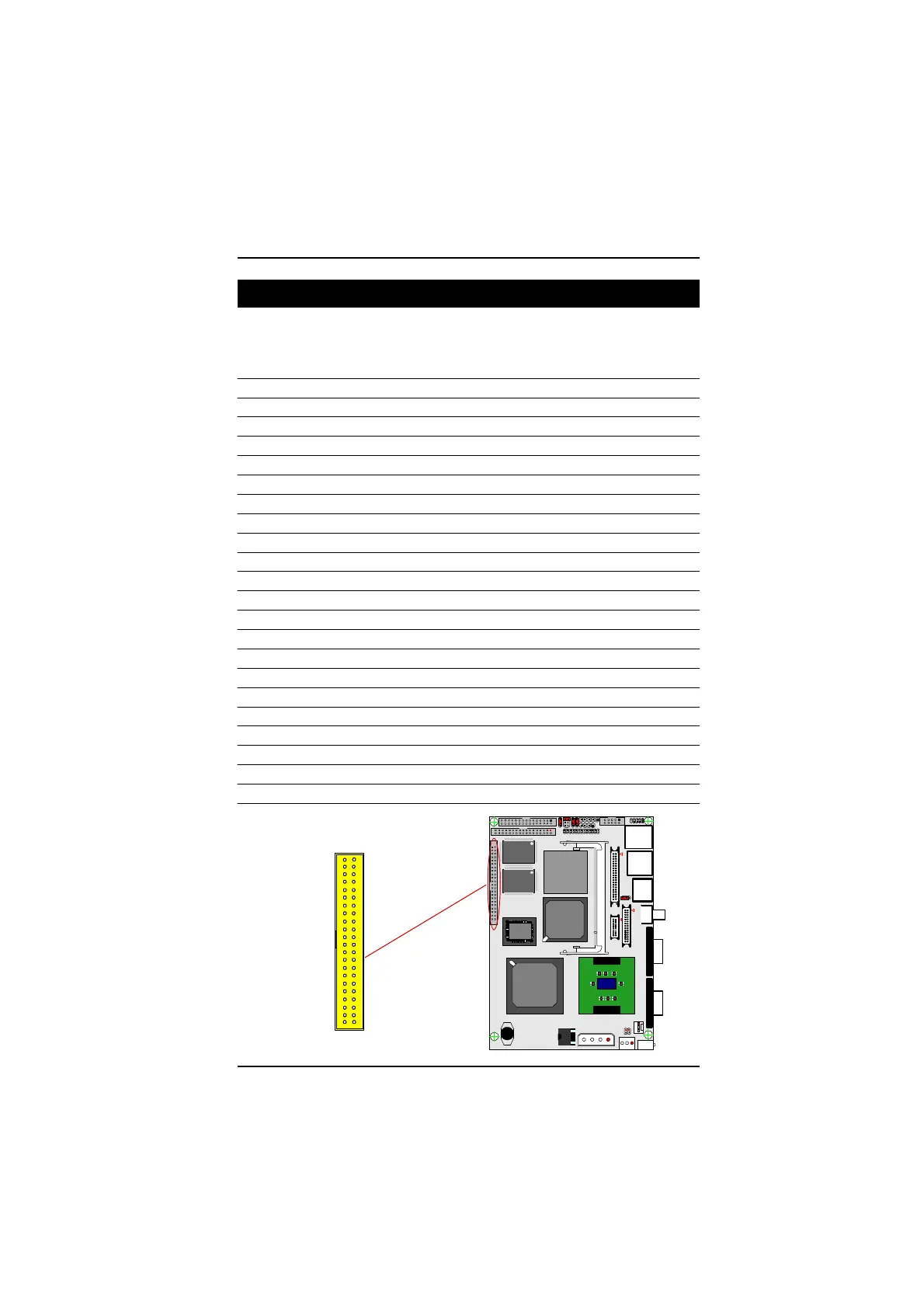

28 EmCORE-i612VLS/C400 User's Manual
IDE Connector
Connector : IDE1
Type : One onboard 44-pin box headers, primary IDE
Pin Description Pin Description
1 #RESET 2 GND
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13
15 D1 16 D14
17 D0 18 D15
19 GND 20 NC
21 REQ 22 GND
23 #IOW 24 GND
25 #IOR 26 GND
27 #IORDY 28 IDESEL
29 #DACK 30 GND
31 IRQ 32 NC (-IOCS16)
33 ADDR1 34 CBLID
35 ADDR0 36 ADDR2
37 #CS0 38 #CS1(#HD SELET1)
39 #ACT 40 GND
41 Vcc 42 Vcc
43 GND 44 NC
1 2
43 44
CS5530A-
UCE
VS236A
Q
NSC 2000
Intel '01
7214A692 SL66D
RJ80530KZ800512
intel
intel 815
i
Intel
