Contec EmCORE-i612VLS/C400 User Manual

25EmCORE-i612VLS/C400 User's Manual

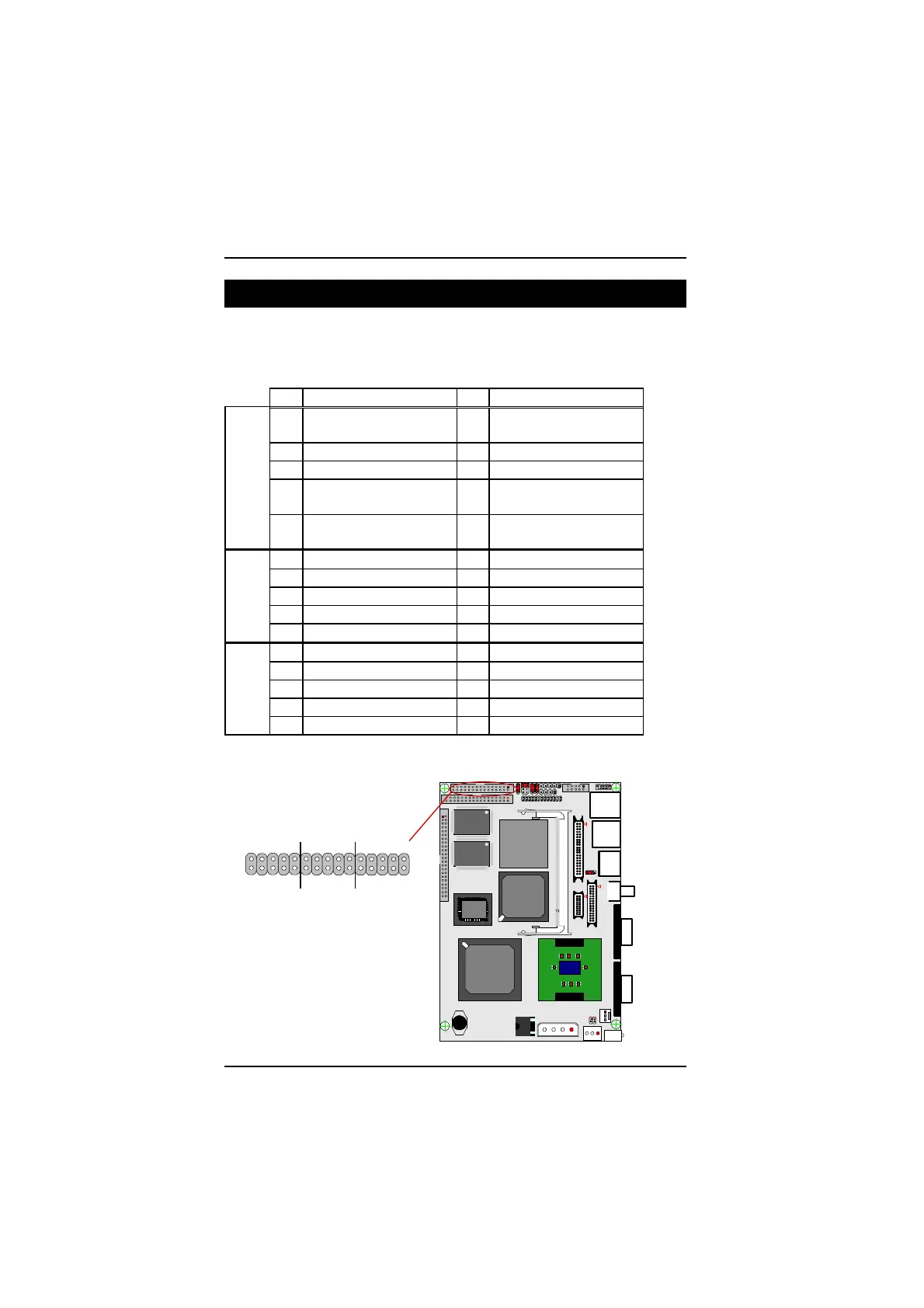

COM2/COM3/COM4 Connector
Connector : COM2_4
Type : onboard 30-pin connector
1
2
29
30
COM2COM3COM4
CS5530A- UCE
VS236A Q
NSC 2000
Intel '01
7214A692 SL66D
RJ80530KZ800512
intel
intel 815
i
Intel
Pin Description Pin Description
COM2
1
DCD2
(RS-422A TXD+ / RS-485 DATA+)
2
RXD2
(RS-422A TXD- / RS-485 DATA-)
3 TXD2 4 DTR2
5 GND 6 DSR2
7 RTS2 8
CTS2
(RS-422A RXD+)
9
RI
(RS-422A RXD-)
10 N.C.
COM3 11 DCD3 12 RXD3
13 TXD3 14 DTR3
15 GND 16 DSR3
17 RTS3 18 CTS3
19 RI3 20 N.C.
COM4 21 DCD4 22 RXD4
23 TXD4 24 DTR4
25 GND 26 DSR4
27 RTS4 28 CTS4
29 RI4 30 N.C.
