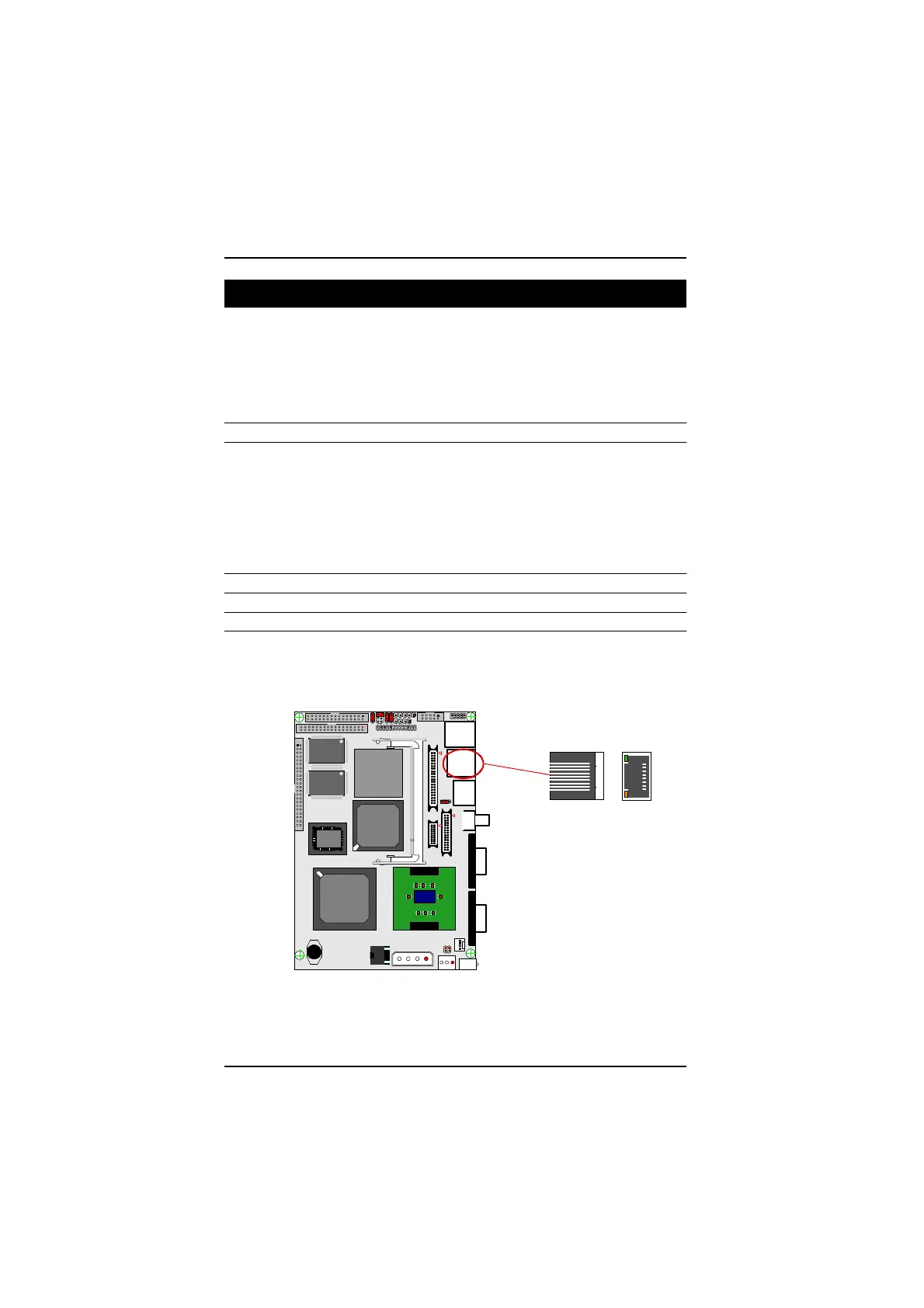

27EmCORE-i612VLS/C400 User's Manual
LAN Connector
LAN Port
Connector : LAN1(10/100Mbps)
Type : external RJ-45 on bracket
Pin 1 2 3 4 5 6 7 8
Desciption TX+ TX- RX+ NC NC RX- NC NC
LAN LED Indicator on RJ-45 connector
Indicator : LED
Type : 2 LED
Mode LED Description
Active Transfer Yellow LED ON (flash)
10 MB mode Green LED OFF
100MB mode Green LED ON
1
2
3
4
5
6
7
8
LAN 1
CS5530A-
UCE
VS236A
Q
NSC 2000
Intel '01
7214A692 SL66D
RJ80530KZ800512
intel
intel 815
i
Intel
