29EmCORE-i612VLS/C400 User's Manual
Interface Connectors HDD, FDD

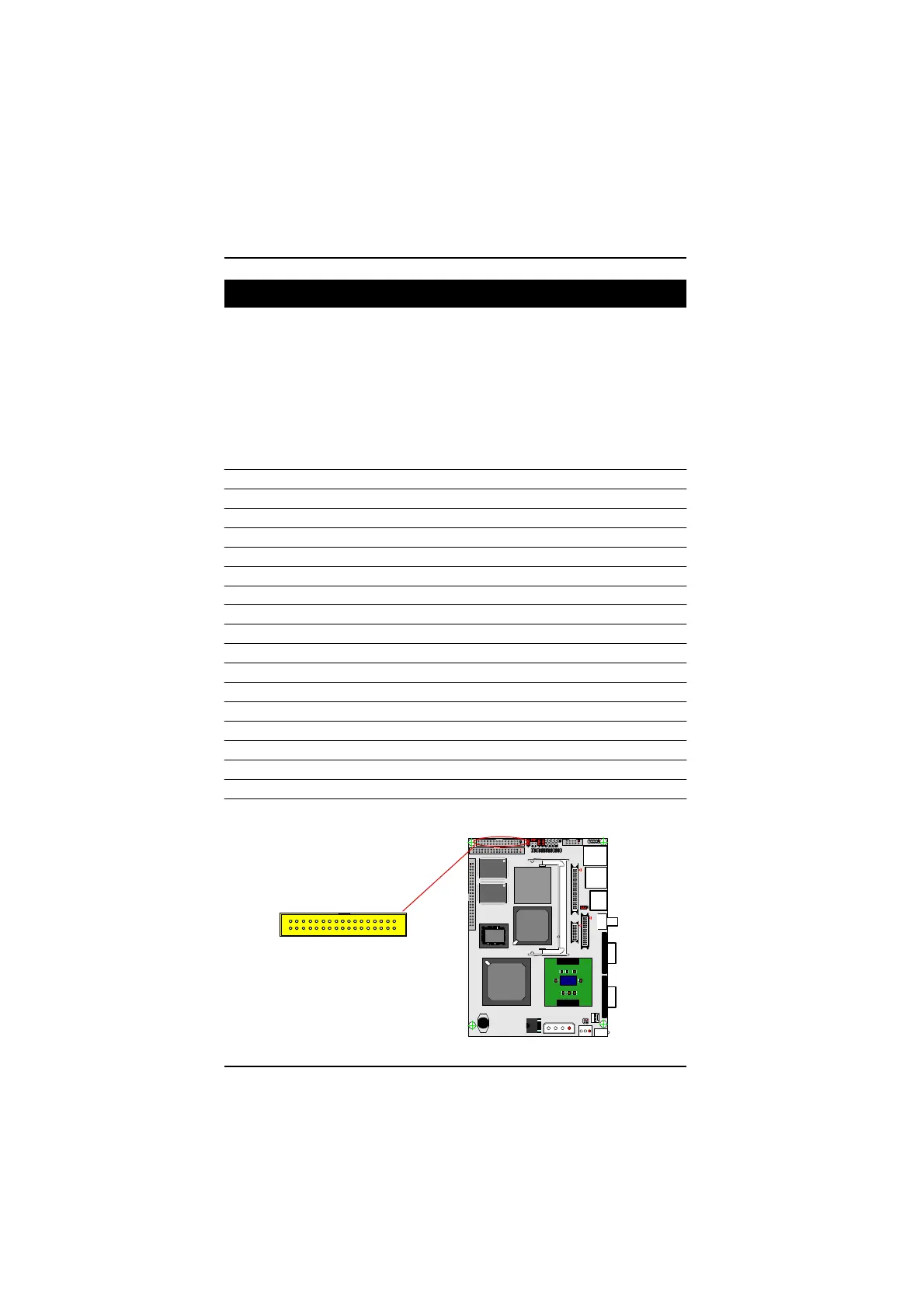

Floppy Disk Drive
Connector
Connector : FDD1
Type : onboard 34-pin box header
Pin Description Pin Description
1 GND 2 DRIVE DENSITY SELECT 0
3 GND 4 NC
5 GND 6 DRIVE DENSITY SELECT 1
7 GND 8 #INDEX
9 GND 10 #MOTOR ENABLE A
11 GND 12 #DRIVER SELECT B
13 GND 14 #DRIVER SELECT A
15 GND 16 #MOTOR ENABLE B
17 GND 18 #DIRECTION
19 GND 20 #STEP
21 GND 22 #WRITE DATA
23 GND 24 #WRITE GATE
25 GND 26 #TRACK 0
27 GND 28 #WRITE PROTECT
29 GND 30 #READ DATA
31 GND 32 #HEAD SELECT
33 GND 34 #DISK CHANGE
1
2
CS5530A-
UCE
VS236A
Q
NSC 2000
Intel '01
7214A692 SL66D
RJ80530KZ800512
intel
intel 815
i
Intel
