Service Guide SD One+ 27

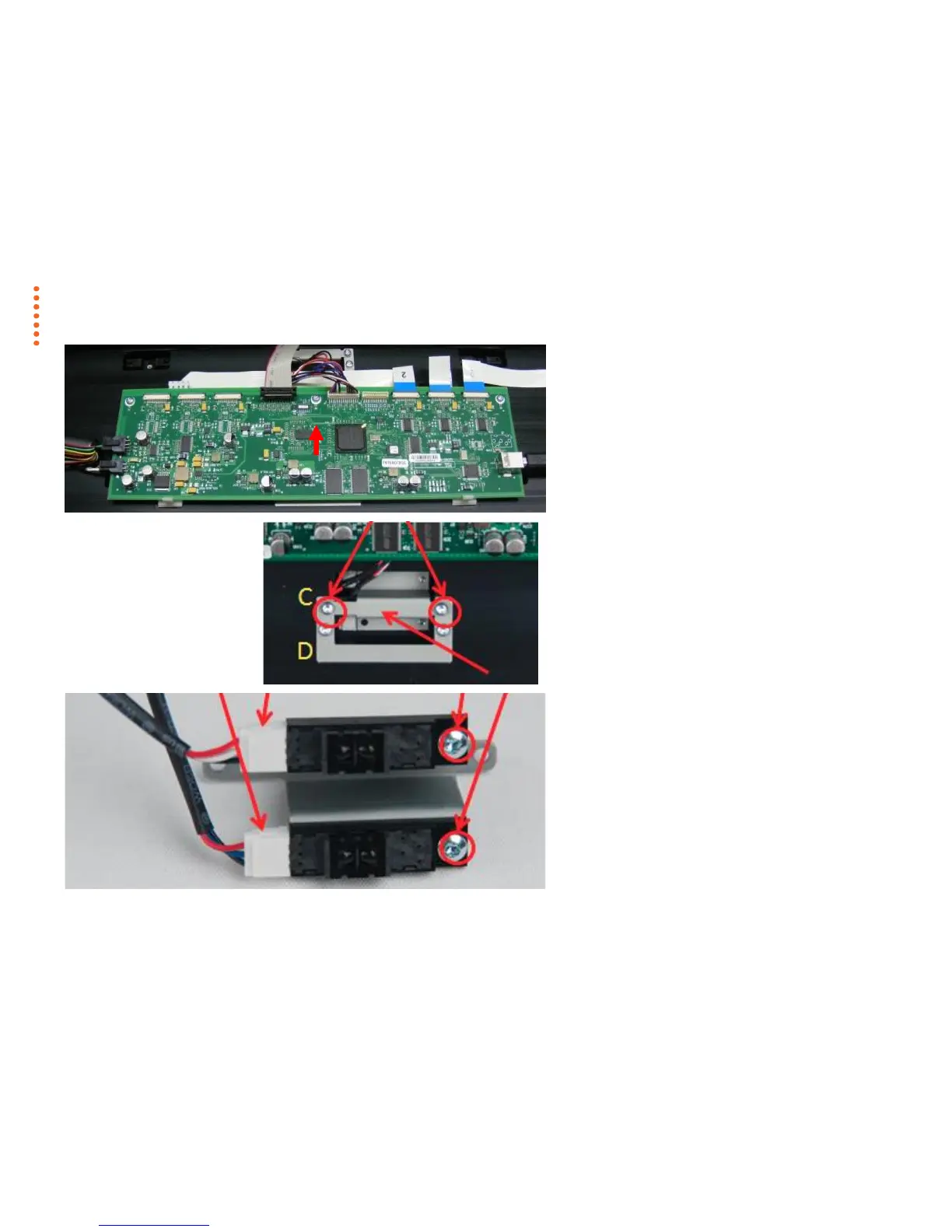

For Lid and Exit sensor:
1. Remove the Scanner Controller Board (SULx), as
shown on page 21.
For Lid and Exit sensor:
1. Remove screws (2xT10).
2. Lift out sensor bracket.
C = Exit Sensor
D = Lid Sensor
3. Disconnect the sensor cable.
4. Remove the screw and sensor.
