Service Guide SD One+ 30
Power Switch & Connector
Prerequisites
Switch power off.
Raise CIS Bridge Unit as shown on page 11.
Remove LHS cover, see page 20.

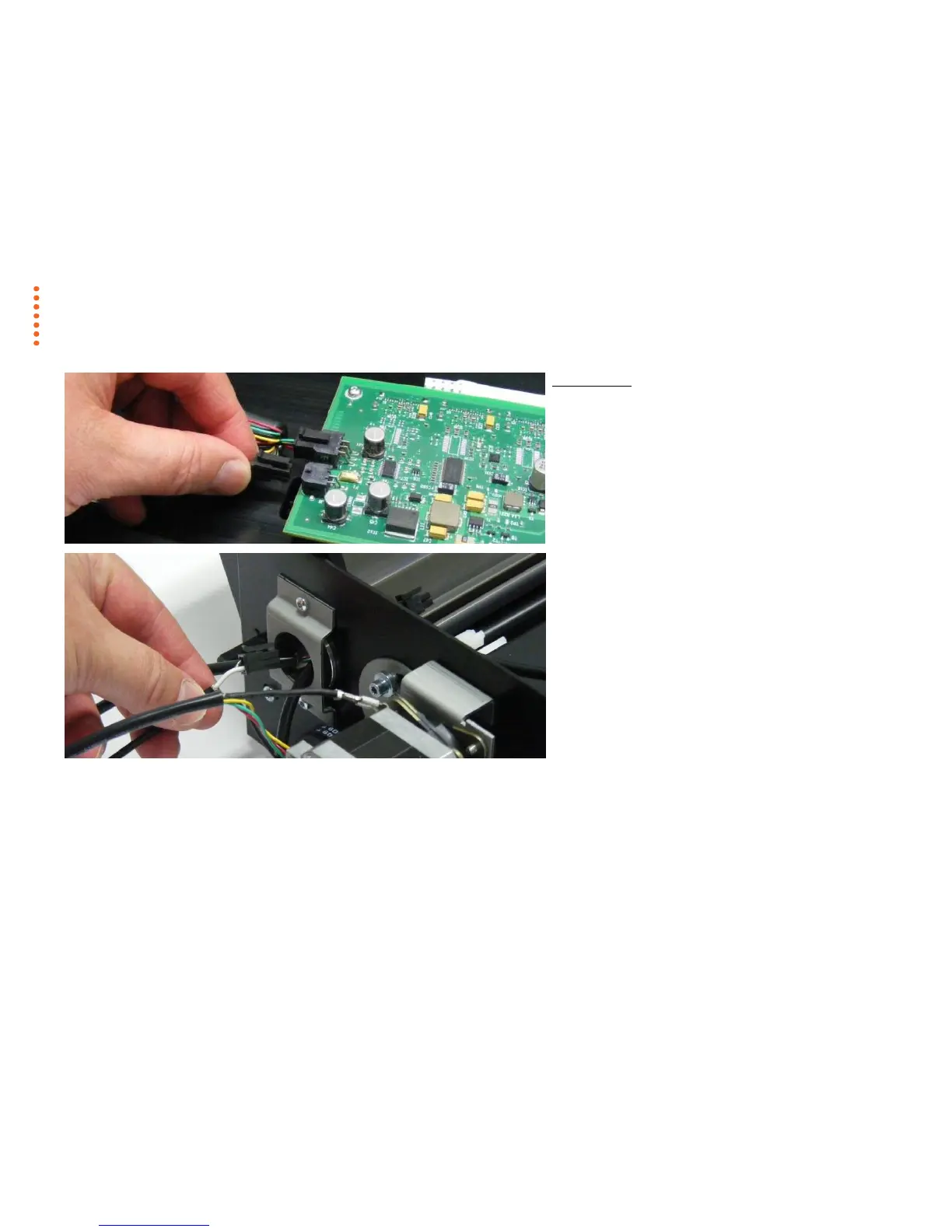

1. Disconnect the Power cable.
2. Guide the cable carefully out though the hole.
