Contex SD One+ - USB Cable, Panel Mount Replacement

Service Guide SD One+ 32
USB Cable, Panel mount
Prerequisites
Switch power off.
Raise CIS Bridge Unit as shown on page 11.
Remove LHS cover, see page 20.

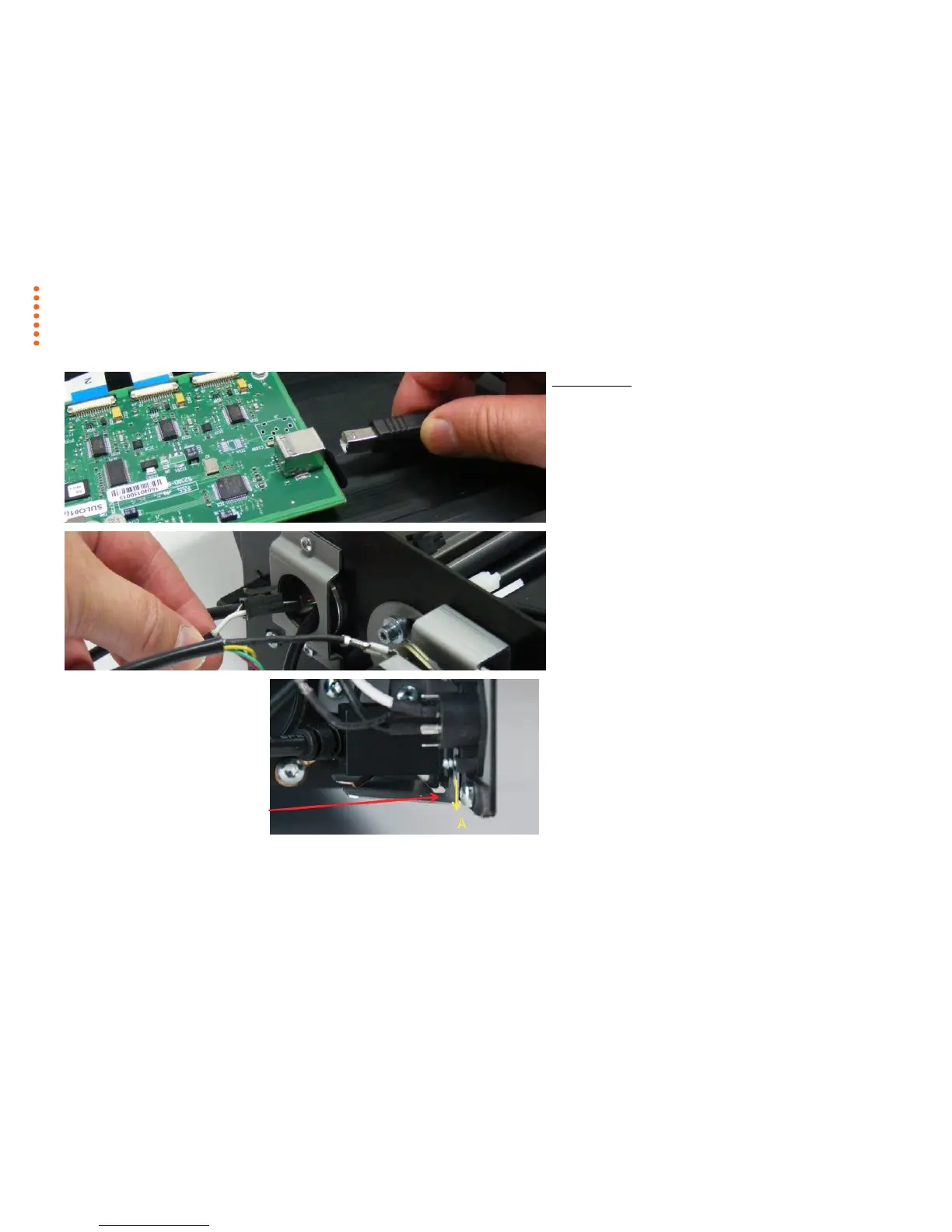

1. Disconnect the 4 cables to the Ethernet / USB
cable.
2. Guide the cables carefully out though the hole.
3. Remove the locking bracket from the Ethernet /
USB connector by sliding it across and out.
4. Replace the Ethernet / USB connector and reverse the steps.
