7. Test 11. Stitching & Vertical Align.

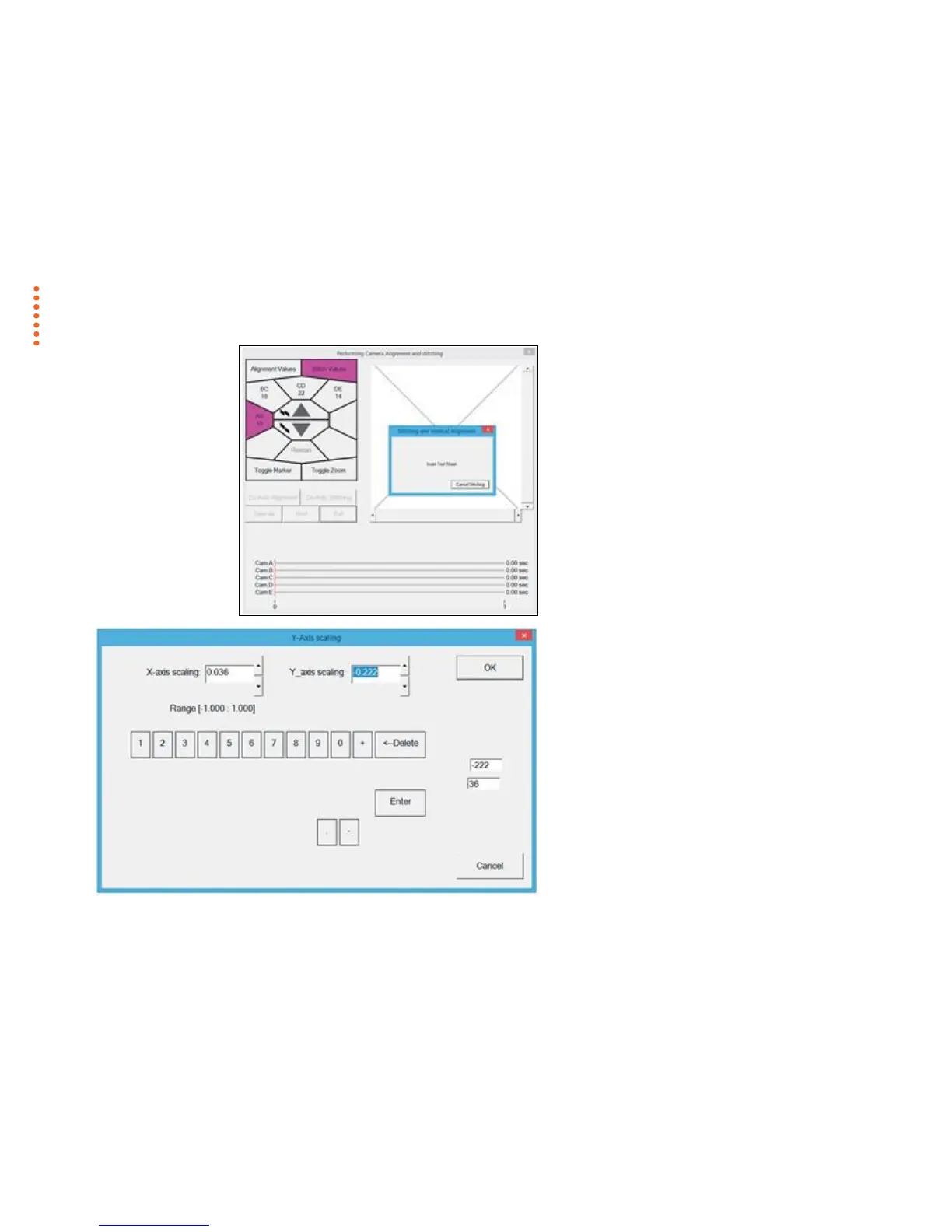

Allows you to adjust either Alignment or Stitching
between two CIS modules.
1) Select Alignment or Stitching.
2) Select the transition area (AB, BC.....)
3) Use the arrows to either increase or decrease the
value.
8. Test 12. Adjust Y-axis Scaling.
Here can you adjust the X and Y scaling.
Scan a known size image, measure in Nextimage,
compare and adjust. The correction is done in % of
the deviation.
