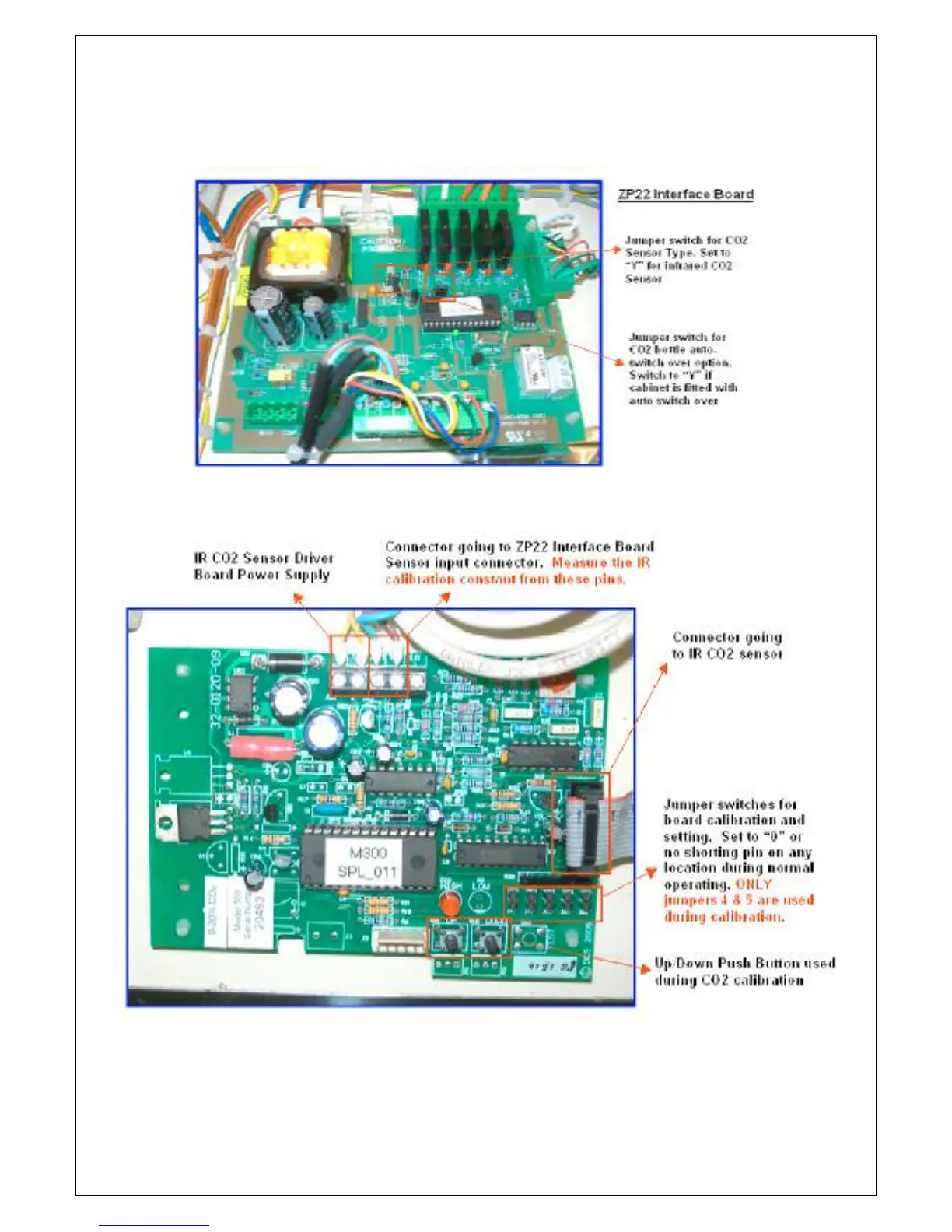

Below is the typical ZP22 Interface Controller Board layout with the
jumper pin setup for configuring the IR CO
2
sensor and the CO
2
tank
auto-change over option.
Below is the typical IR CO
2
sensor driver board. The jumper pins and
push button used during calibration is shown below.
