12 Unidrive User Guide
www.controltechniques.com Issue Number: 9
2.7 Option Modules
The following option modules are available for use with Unidrive.

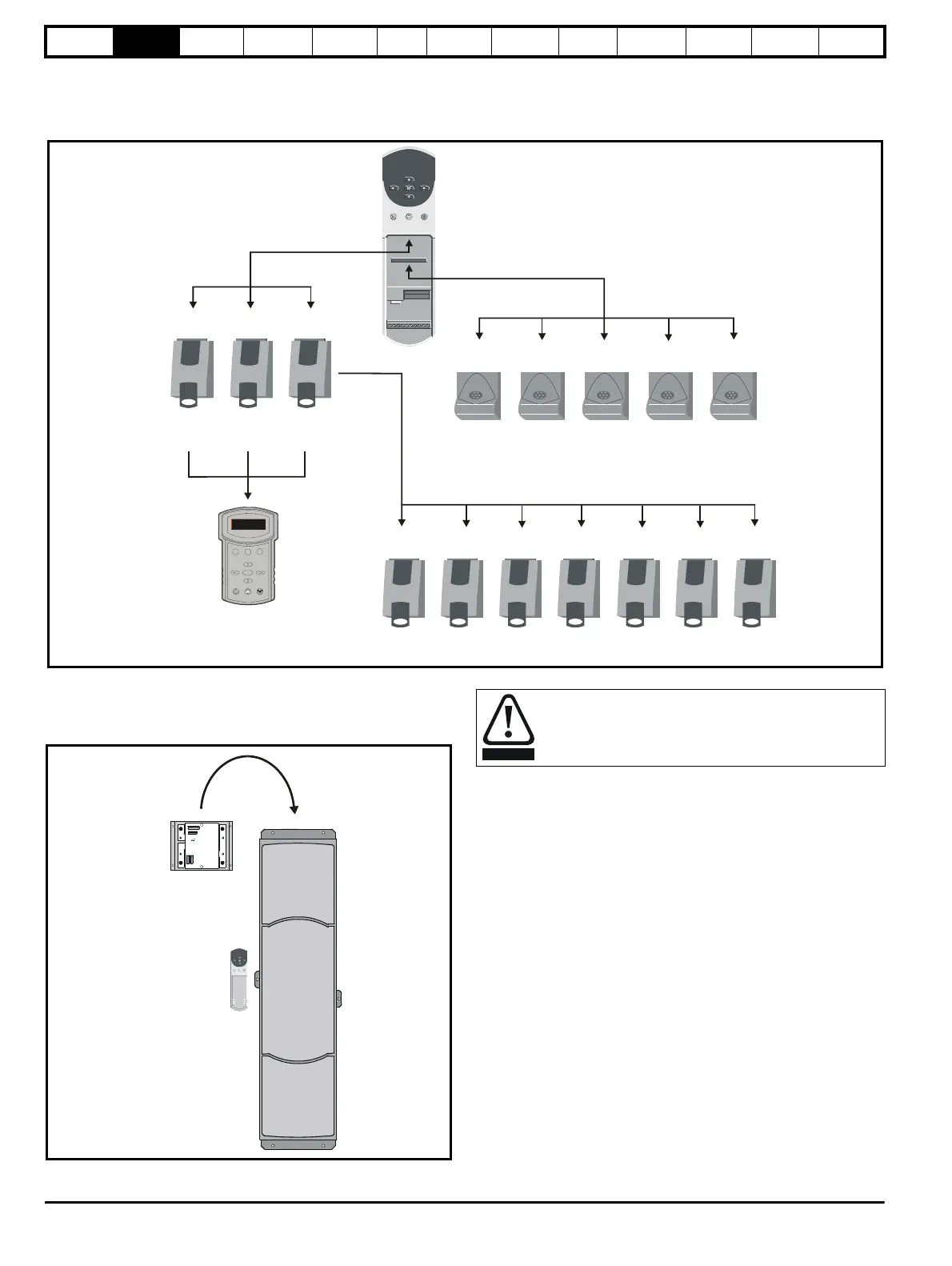

Figure 2-6 Unidrive options available for all sizes
Unidrive sizes 1 to 4 have built in braking transistors; for Unidrive size 5
a braking option can be fitted if required as shown below:
Figure 2-7 Braking option available for Size 5
2.8 More information
The following manuals are also available providing full information on the
various option modules, regen mode and advanced product use:
• Unidrive Advanced User Guide
• Regen Installation Guide
• UD50 User Guide (Additional I/O small option module)
• UD51 User Guide (Second encoder small option module)
• UD52 User Guide (SINCOS encoder interface small option module)
• UD53 User Guide (Resolver interface small option module)
• UD55 User Guide (Cloning interface small option module)
• UD70 User Guide (Large option module and software)
• UD71 User Guide (Serial communications large option module)
• UD73 User Guide (Profibus-DP large option module)
• UD74 User Guide (Interbus large option module)
• UD75 CT Net User Guide (Large option module)
• UD76 User Guide (Modbus Plus large option module)
• UD77 User Guide (Device Net large option module)
• UD78 User Guide (Servo large option module)
• CAN User Guide (Large option module)
• CANopen User Guide (Large option module)
• Universal Keypad User Guide
• Universal Keypad Advanced User Guide
Please also see the Unisoft drive commissioning software which
contains a help file detailing full advanced parameter descriptions and
other useful information.
UD78 UD71
UD70
UD55 UD53 UD52 UD51 UD50
UD73 UD74 UD75
UD76
Servo RS232
RS485
Applications
module
Applications
module
Cloning
module
Resolver Sin Cos
Encoder
Second
Encoder
Extra I/O
Profibus-DP Interbus CT Net Modbus
Pl
us
UD77 UD77
UD77
Device
N
et
CAN CANopen
9901 11
destination addr
F1
F2
F3
M
Universal
Keypad
Size 5 Braking
option
The drive must be powered down for a minimum duration of
10 minutes before an option module is fitted or removed.
WARNING
