Unidrive User Guide 17
Issue Number: 9 www.controltechniques.com

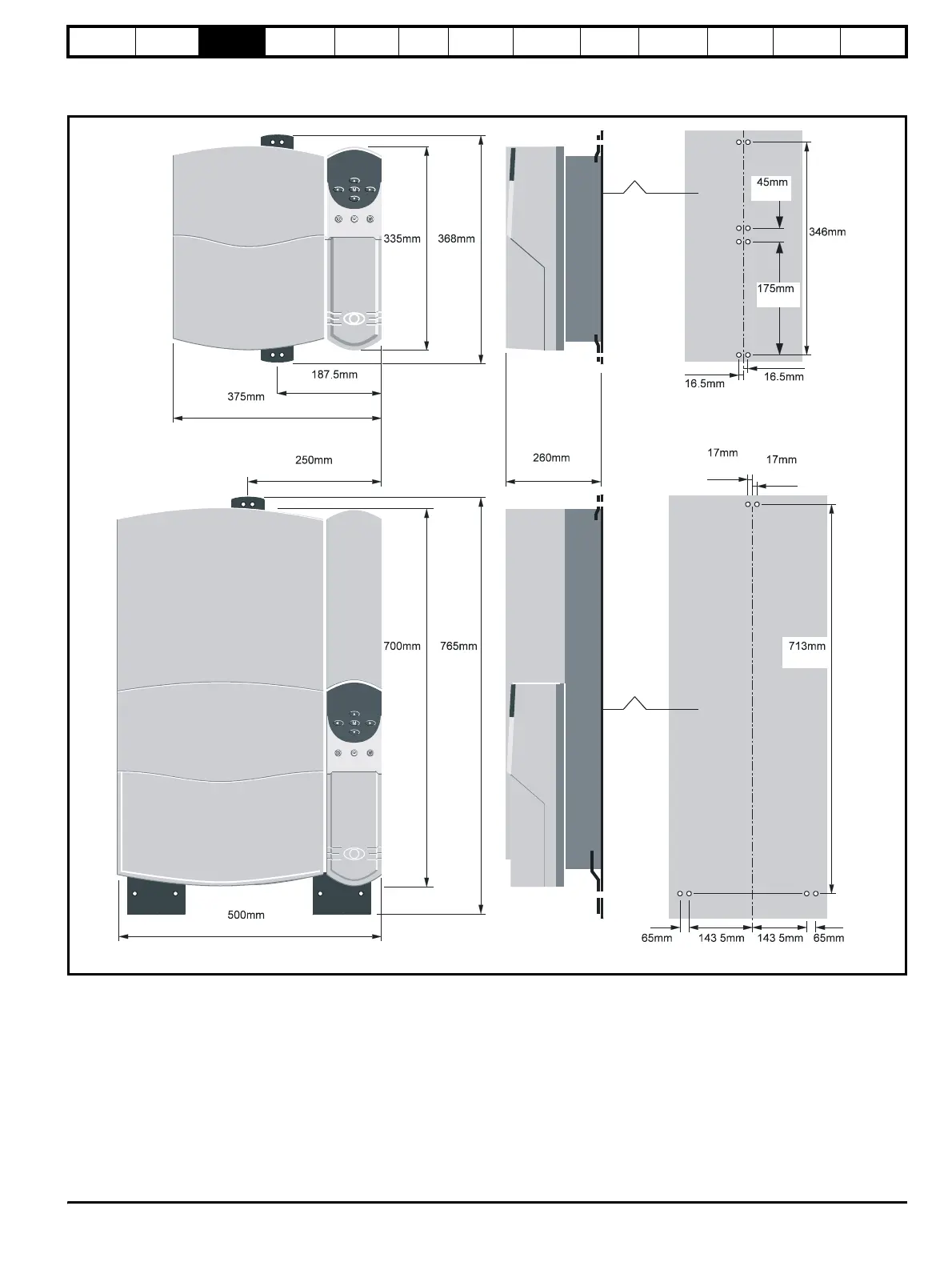

Figure 3-7 Surface mounting of model sizes 3 and 4
Model
size 3
Model
size 4
Back-plate
Back-plate
13.189in 14.488in
1.772in
13.622i
n
6.890in
0.650in
0.650in
10.236in
9.843in
7.382in
14.764in
27.559
in
30.118
in
19.685in
0.669in
0.669in
28.071in
2.559in 2.559in5.650in 5.650in
