6.5 Vacuum pump oil replacement
Attention! Risk of injury from leaking refrigerant.
Contact with the refrigerant can cause blindness and other physical injury
to the user!
Always use goggles and gloves!
Attention! Risk of injury from electric shock.
Before working on the machine, always disconnect the plug from the power supply.
Note! Disposal in according to local directives!
1. Dismount the front cover.
2. Unscrew the oil discharge screw and wait for the oil to drain. Ret discharge screw.
3. Unscrew the mu󰀪er.
4. Fill with new oil. The correct oil level of the pump is around half sight glass (Filling capacity approx. 400
ml).
5. Ret the mu󰀪er.
Note: The picture could show a di󰀨erent type of vacuum
pump.

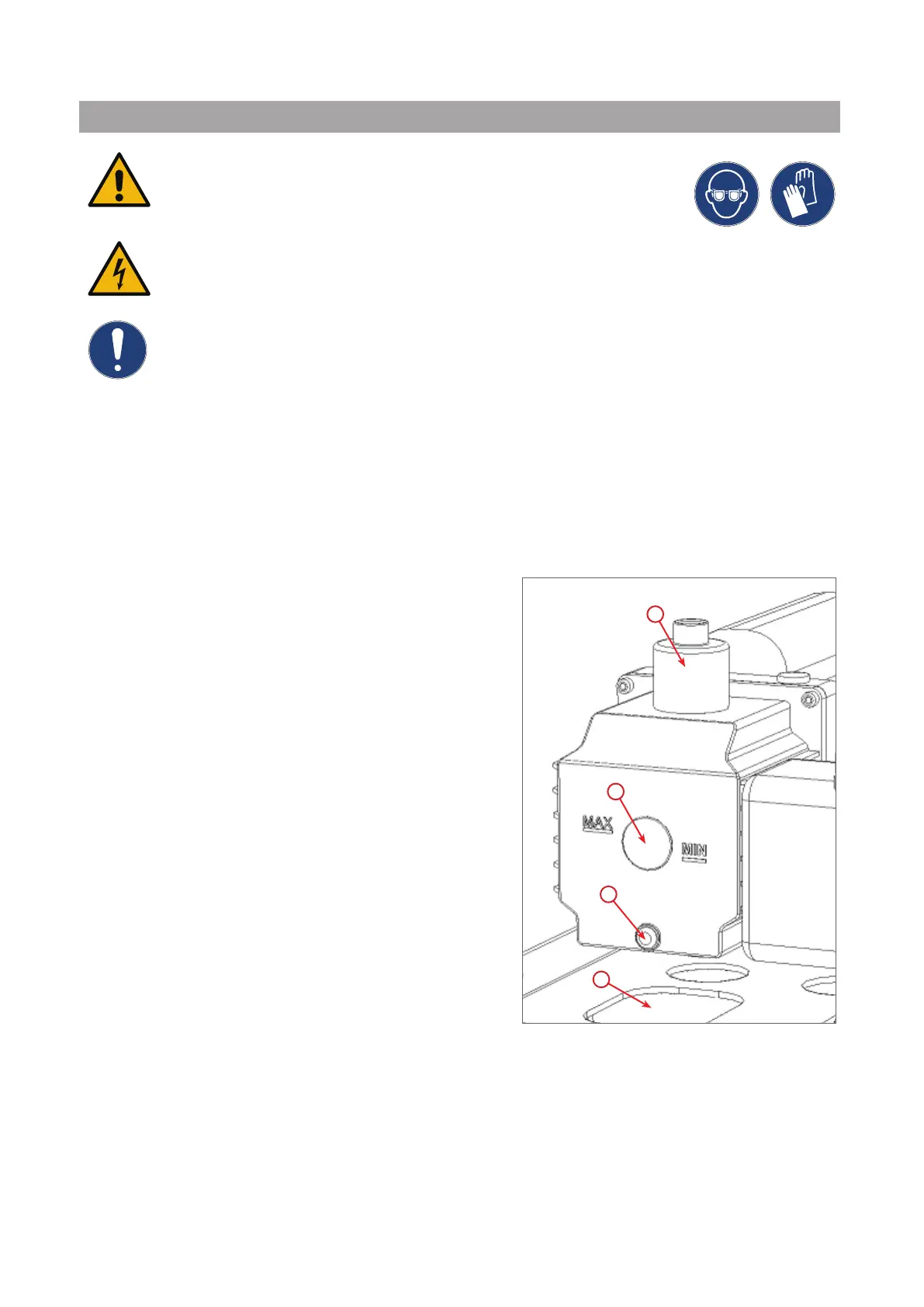

1 Mu󰀪er
2 Sight glass to indicate the oil level
3 Discharge screw
4 Discharge hole
6. Reassemble the front cover.
1
2
3
4
g. 011 Vacuum pump
