Fixing details
Read all the installation instructions before commencing with the installation. The installation of
this panel must be carried out by a suitably qualified / trained person. The installation must
comply with relevant wiring regulations
The Panel can be surface mounted or recessed . To surface mount; drill three holes and fix the
backbox to the wall using suitable screw fixings.
The electronic components within the panel are Static Sensitive. Do not touch the
electronics directly.

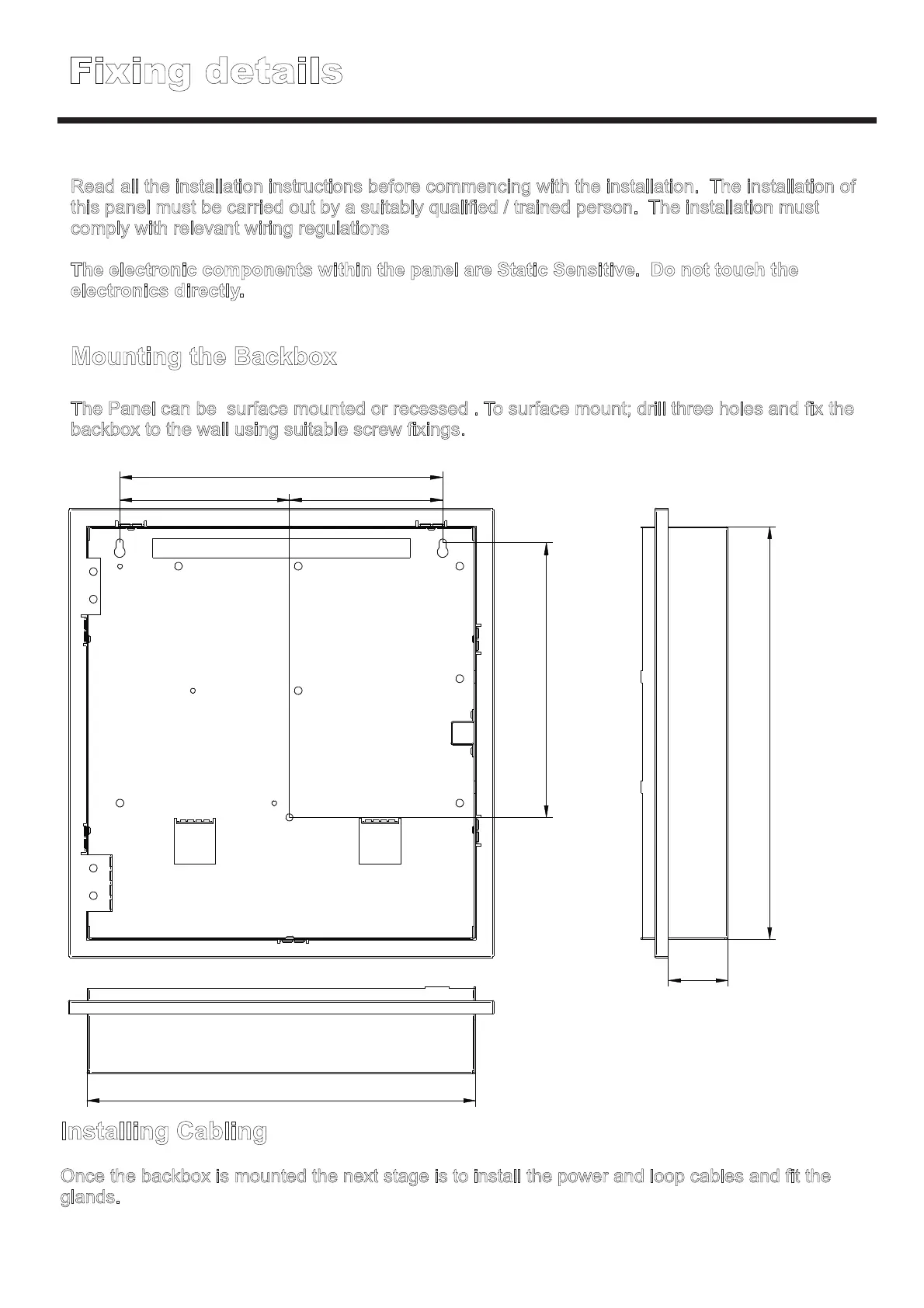

Mounting the Backbox
Installing Cabling
Once the backbox is mounted the next stage is to install the power and loop cables and fit the
glands.
270.00
128.20141.80
229.80
345.00
50.00
325.00
The panel should be installed in a clean, dry, reasonably well ventilated place, and not in direct
sunlight. Temperatures in excess of +35°C and below -10°C may cause problems, if in doubt
consult Technical Support. The panel should be located away from any potential hazard, in a
position where it is readily accessible to authorised staff.
Mount the panel to the wall using the drill template provided. Do not drill through the panel to
the wall as dust will contaminate the circuitry.
Never carry out insulation tests on cables connected to electronic equipment.
DO NOT OVER TIGHTEN TERMINAL CONNECTOR SCREWS.
Always use the correct type of cables as defined in the current Easicheck installation
planning guide.
Always adhere to volt drop limitation when sizing cables.
Always observe polarity throughout. Non colour coded conductors should be
permanently identified.
Installation Guide
l
l
l
l
l
l
l
The Panel utilises intelligent soft addressing technology to greatly simplify the
installation and commissioning processes. Once the system has been installed and the
autolearn menu selected, the control panel will automatically scan the data loop and
allocate each device with an address number corresponding with its position on the
loop, this avoids the traditional need for manual addressing of the system devices which
is time consuming and provides a potential for error.
It is of vital importance that accurate details are kept of the exact wiring route in order to
determine which address has been allocated to each device.
Installation
