Cooper EASICHECK EC2001 - DataBus Wiring Detail

Comms
Fault
Disable
Power
On
General
Fault
Emergency Mode
Luminaire Fault System Fault
Test in Progress
G
r
o
u
p
E
A
S
I
MAXIMUM NUMBER OF
DEVICES IN LOOP = 200
(INCLUDING RADIAL CIRCUITS)
SPUR ISOLATOR
TO OTHER NETWORKED
PANELS (MAXIMUM 63 PANELS
CAN BE NETWORKED)
CABLE TYPE: 2Core 1.5mmSqr un-screened twisted pair
Type BELDEN 8471 alternatively LSZH type cable Belcom
cables type 4001P1644 (16AWG)
CABLE TYPE: 2Core
1.5mmSqr Screened Belden
cable type 8719 CL2
LOOP +Ve
LOOP IN
LOOP OUT
LUMINAIR
IN
OUT

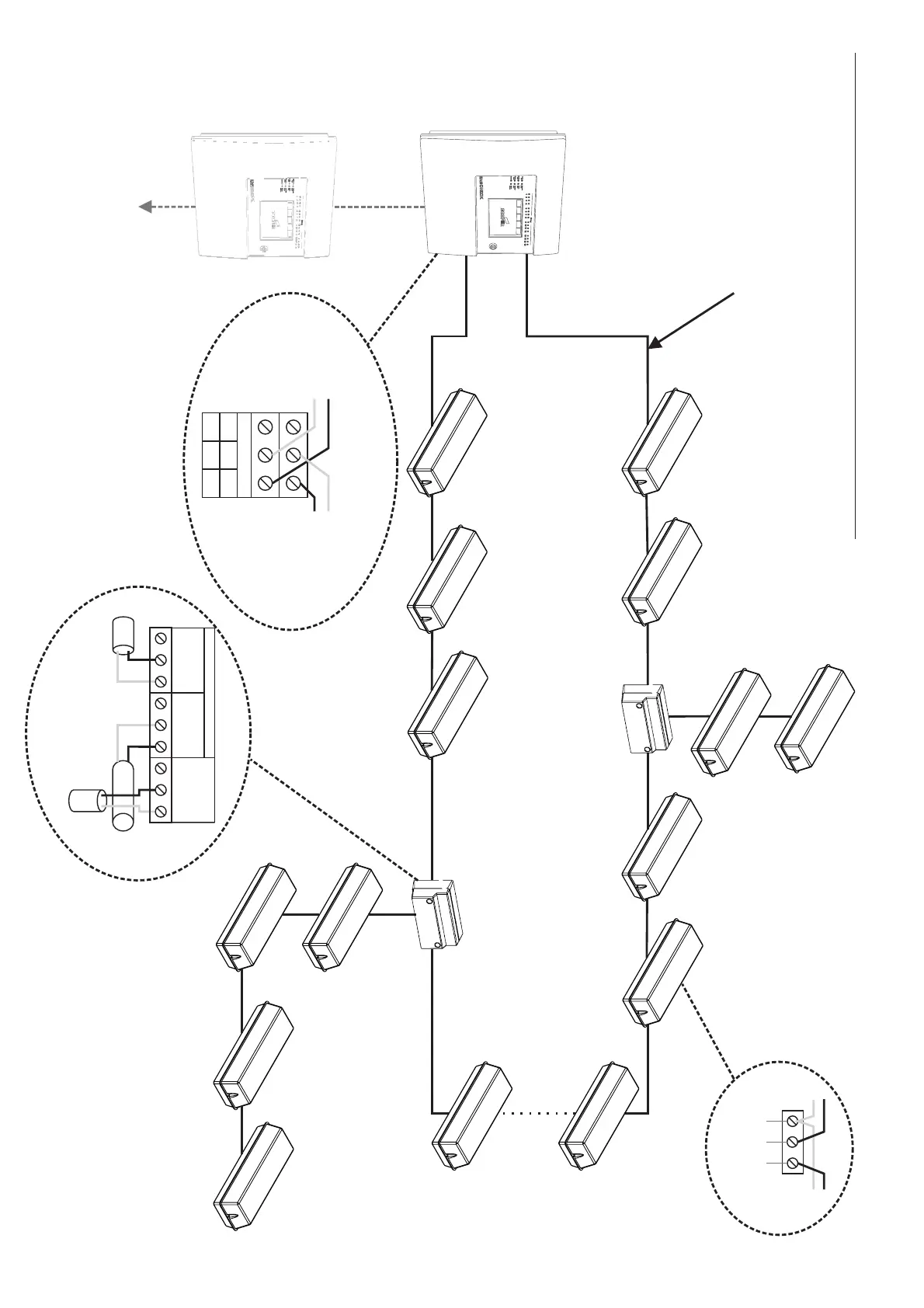

EASICHECK 2 DATABUS WIRING DETAIL
FOR CLARITY: MAINS WIRING AND SUPPLY MONITORING
CABLES ARE NOT SHOWN. PLEASE REFER TO LUMINAIRE
WIRING DIAGRAM FOR DETAILS.
LUMINAIR DATA LOOP
WIRING DETAIL
SPUR ISOLATOR
TOP
BOT
E E
S+ S-
F+
F-
LOOP 1
LOOP +Ve
LOOP -Ve
LOOP +Ve
LOOP -Ve
IN
OUT
PANEL DATA LOOP
WIRING DETAIL
IN
OUT
SPUR
IN
EARTHEARTH
-
+
LOOP 1
EARTHEARTH
-
+
OUT
EARTHEARTH
SP-
SP+
SPUR
MSI850
MSI850
Specification
Power Supply
Batteries
Inputs
Outputs
PLEASE NOTE:
Mains : 230V AC +10% -15% 50Hz
Nominal Current : 75mA
Maximum Current : 750mA
Input Fuse R1 : NTC SG39 Imax 4Amp
Weight Including Batteries : 18Kg
Number of Batteries : 2
Manufacturer : YUASA NP11-123
Capacity : 11Ah
Battery Fuse : 6.3A Anti Surge (F4)
Maximum Battery Current : 3.5Amps
Maximum Battery Charge Current : 1.0Amps
Charging characteristics : Constant voltage (temperature compensated)
Deep Discharge protection : 20.6 volts
Device Loop :1(pair)
Network Loop :1(pair)
Volt free Input :1(pair) Programmable input
24V Auxiliary output : 24V Output to drive auxiliary devices max 300mA
Weight Excluding Batteries : 9Kg
Dimension’s (standard Batteries) : 495(L) x 395(H) x 180(D) mm’s
Backbox material : Mild Steel powder coated
Facia Material : PC/ABS
Flamability rating : UL94 V0
No. of Knockout : 51
Knockout Diameter : 20mm
DO NOT OVERTIGHTEN OR USE EXCESSIVE FORCE WHEN
TIGHTENING SCREWS ON TERMINAL BLOCKS AS THIS WILL CAUSE IRREPARABLE
DAMAGE TO COMPONENTS.
RISK OF EXPLOSIONS IF BATTERY IS REPLACED BY INCORRECT TYPE.
DISPOSE OF BATTERIES ACCORDING TO INSTRUCTIONS AND WITHIN LOCAL
GOVERNMENTAL/ENVIRONMENTAL GUIDELINES AND REGULATIONS.
Mechanical Specification
CAUTION
