VR-32 Regulator and CL-2A Control
1-14

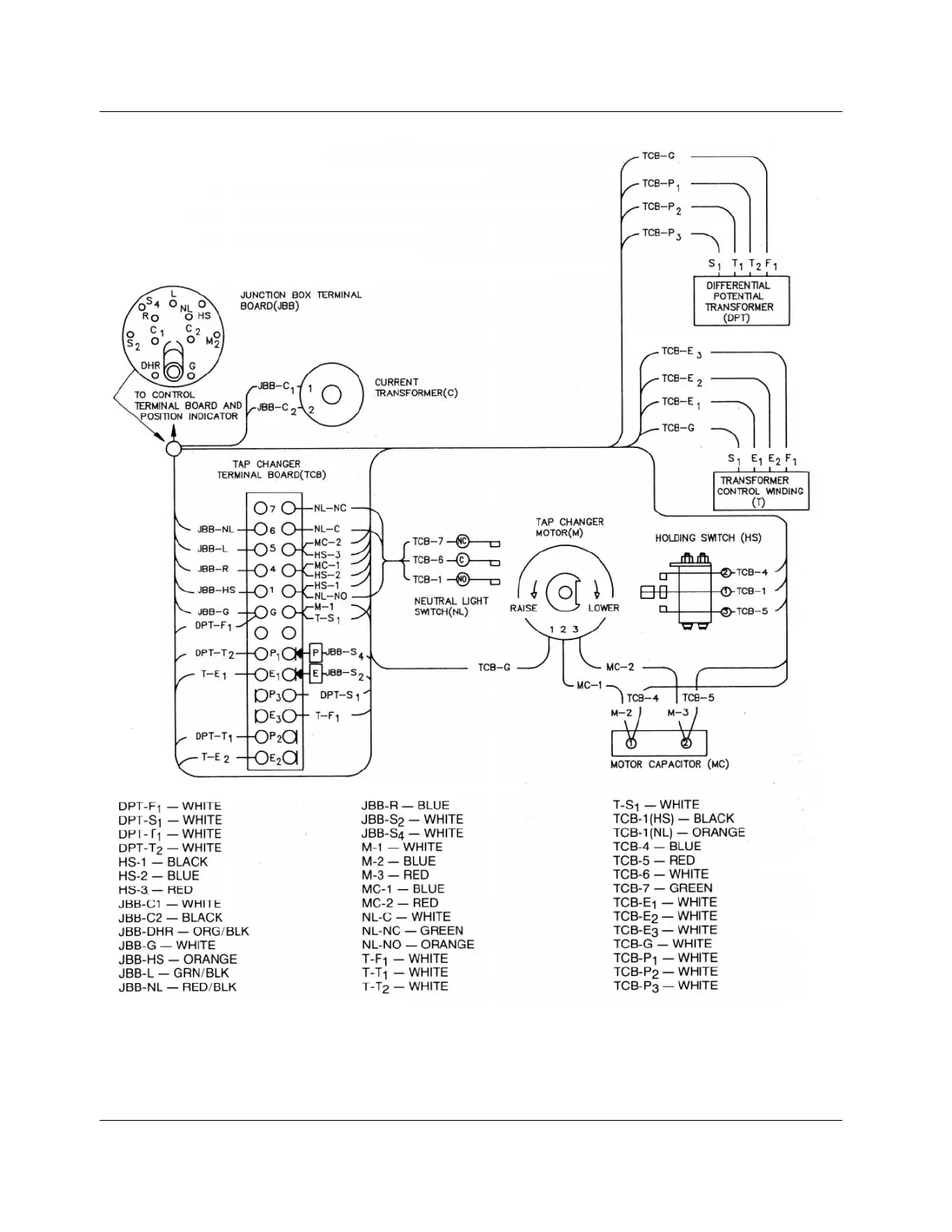

Figure 1-15.
Internal wiring of regulator with series winding on input side, with differential potential transfomrer.
