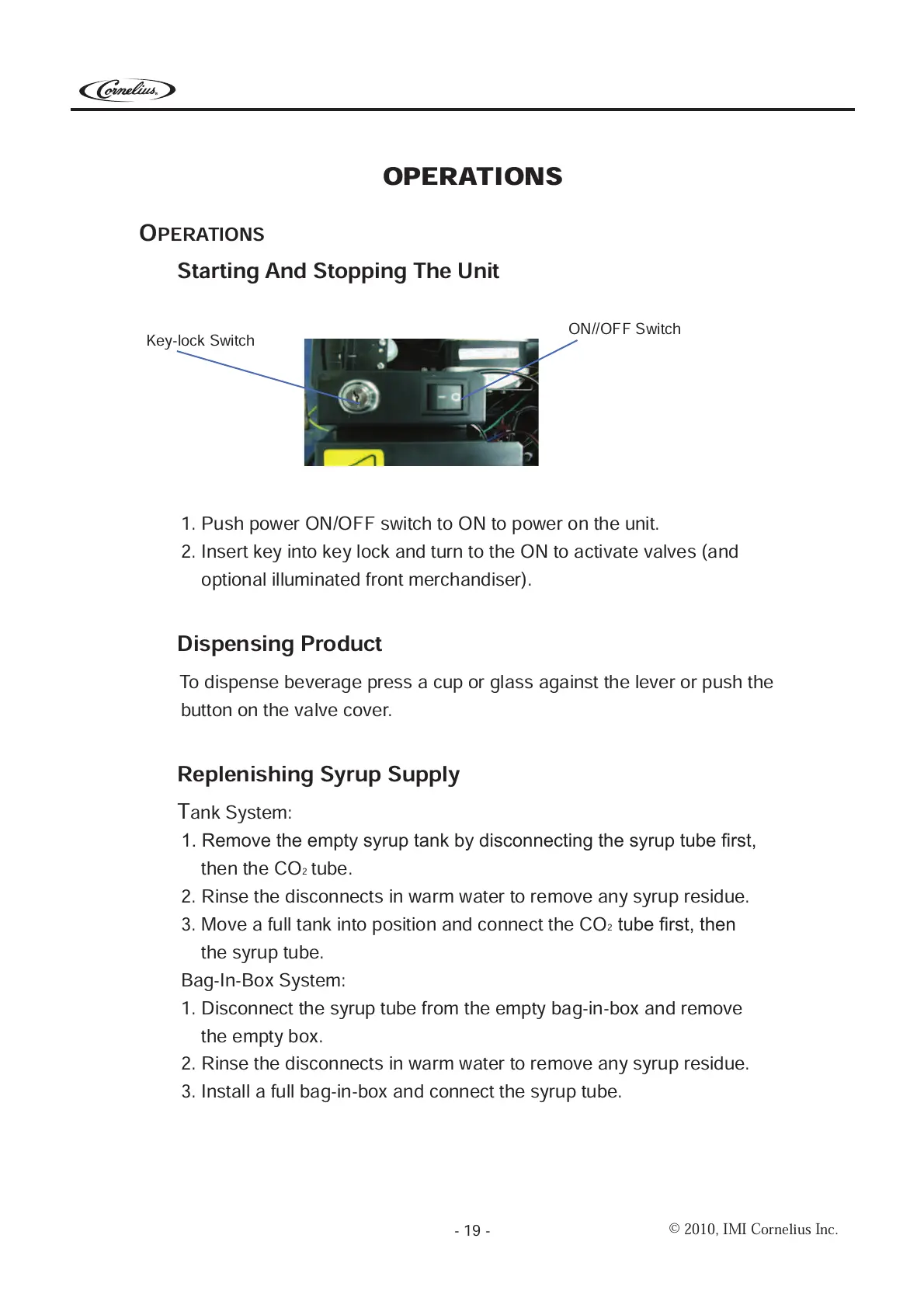

OPERATIONS
OPERATIONS
Starting And Stopping The Unit
1. Push power ON/OFF switch to ON to power on the unit.
2. Insert key into key lock and turn to the ON to activate valves (and
optional illuminated front merchandiser).
Dispensing Product
To dispense beverage press a cup or glass against the lever or push the
button on the valve cover.
Replenishing Syrup Supply
T
ank System:
1. Remove the empty syrup tank by disconnecting the syrup tube !rst,
then the CO2 tube.
2. Rinse the disconnects in warm water to remove any syrup residue.
3. Move a full tank into position and connect the CO2
tube !rst, then
the syrup tube.
Bag-In-Box System:
1. Disconnect the syrup tube from the empty bag-in-box and remove
the empty box.
2. Rinse the disconnects in warm water to remove any syrup residue.
3. Install a full bag-in-box and connect the syrup tube.
ON//OFF Switch
Key-lock Switch
