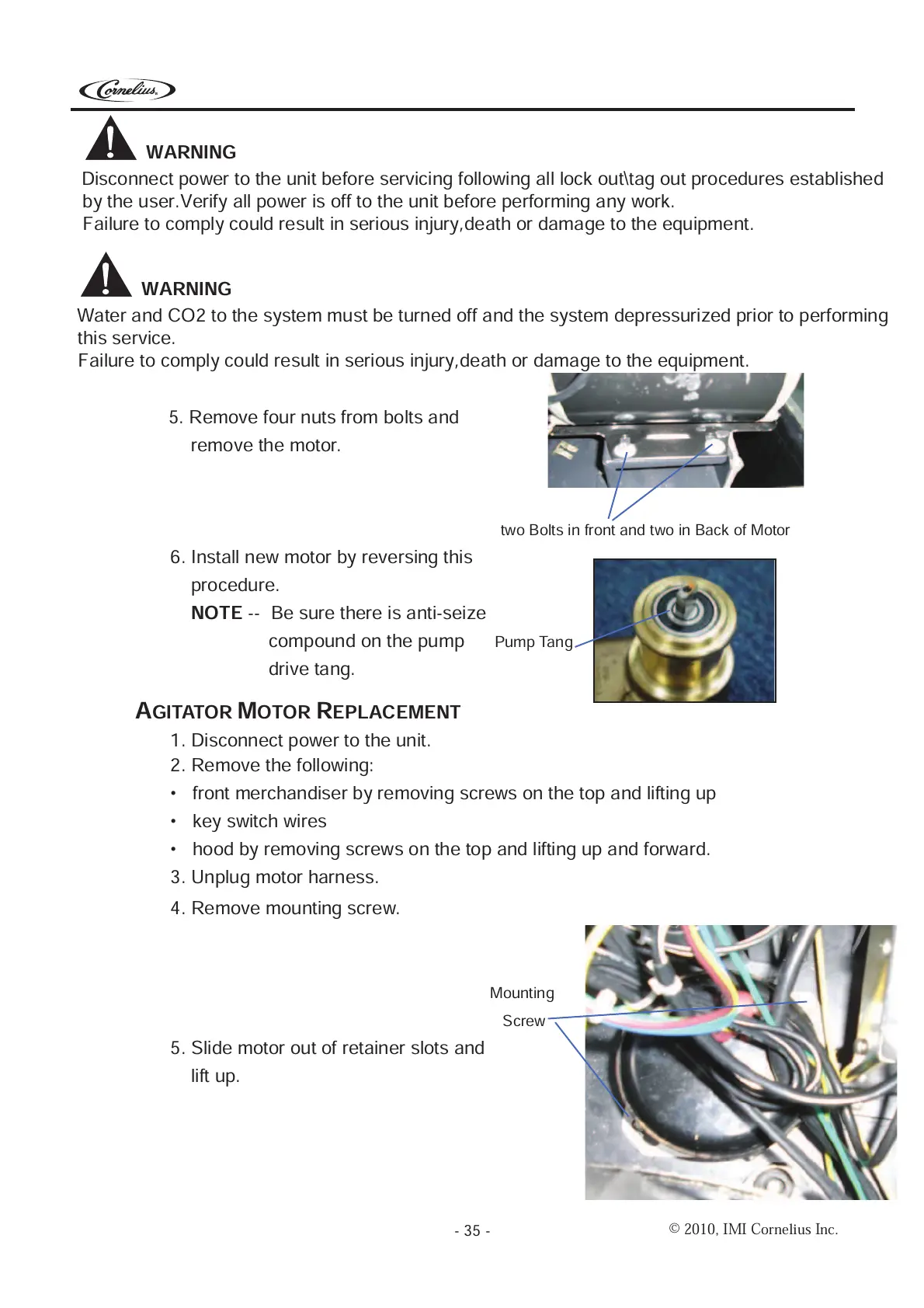

5. Remove four nuts from bolts and
remove the motor.
two Bolts in front and two in Back of Motor
6. Install new motor by reversing this
procedure.
NOTE
-- Be sure there is anti-seize
compound on the pump Pump Tang
drive tang.
AGITATOR MOTOR REPLACEMENT
1. Disconnect power to the unit.
2. Remove the following:
• front merchandiser by removing screws on the top and lifting up
• key switch wires
• hood by removing screws on the top and lifting up and forward.
3. Unplug motor harness.
4. Remove mounting screw.
Mounting
Screw
5. Slide motor out of retainer slots and
lift up.
Water and CO2 to the system must be turned off and the system depressurized prior to performing
this service.
Failure to comply could result in serious injury,death or damage to the equipment.
WARNING
Disconnect power to the unit before servicing following all lock out\tag out procedures established
by the user.Verify all power is off to the unit before performing any work.
Failure to comply could result in serious injury,death or damage to the equipment.
WARNING
