POWER CORD REPLACEMENT
1. Disconnect power to the unit.
2. Remove the following:
3. Remove second valve from the left to facilitate routing of the new cord.

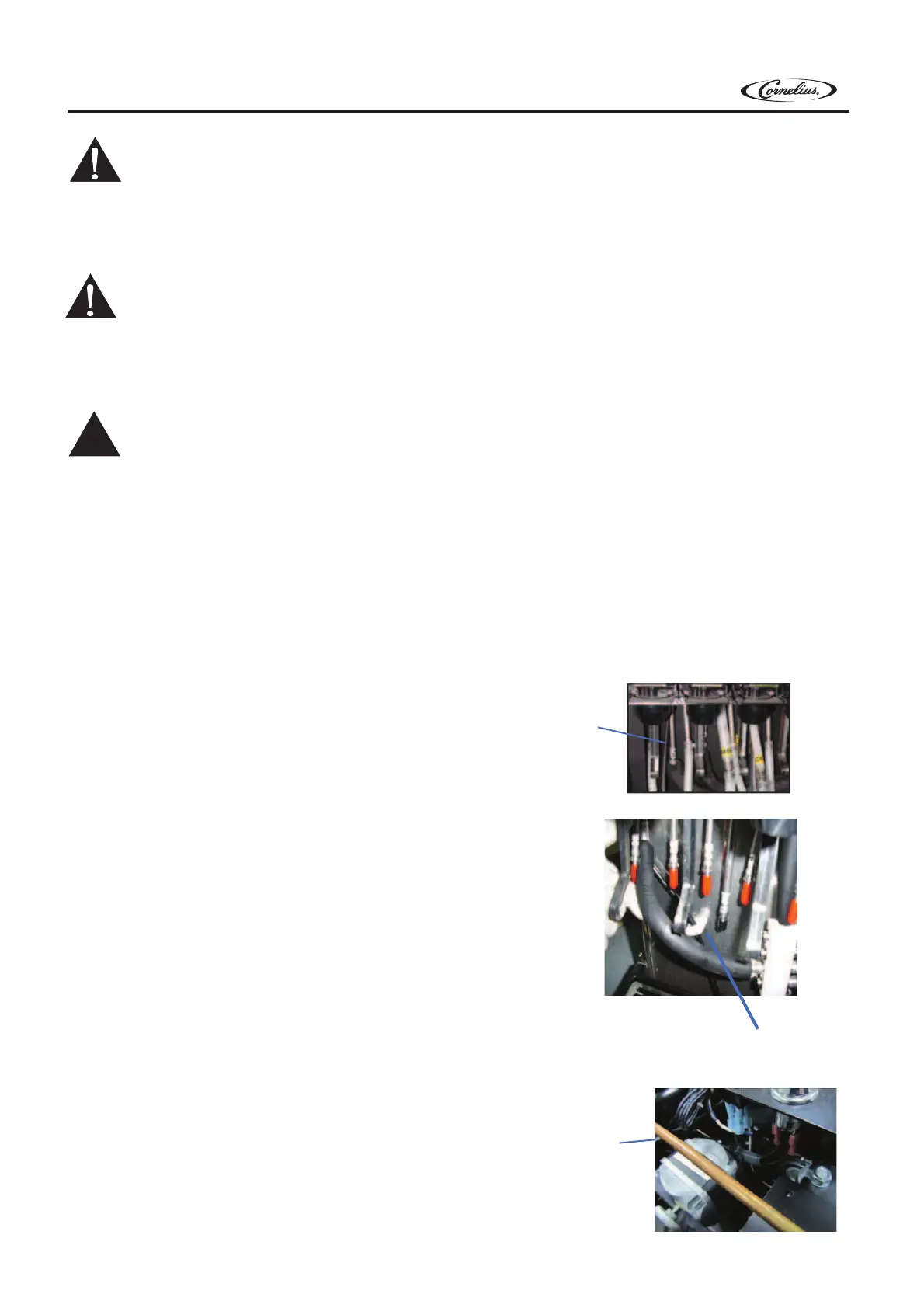

4 A. Route the new power cord
along the same path as the old
one (removing the old cord as Route Cord Up
you go). and Behind
Valve Panel
4 B. First route the new cord up
behind the valve panel and
through the cutout in the pump
deck. Use the already
attached wire tie/fastener on
the deck to secure the cord.
4 C. Connect cord to the receptacle
on the refrigeration deck.
Plug Cord into
Receptacle
– Top cover by removing
screws on the top and lifting
up
– key switch wires
WARNING
-- If the supply cord is damaged,it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a hazard.

Cord
Fastener
Water and CO2 to the system must be turned off and the system depressurized prior to performing
this service.
Failure to comply could result in serious injury,death or damage to the equipment.
WARNING
Disconnect power to the unit before servicing following all lock out\tag out procedures established
by the user.Verify all power is off to the unit before performing any work.
Failure to comply could result in serious injury,death or damage to the equipment.
