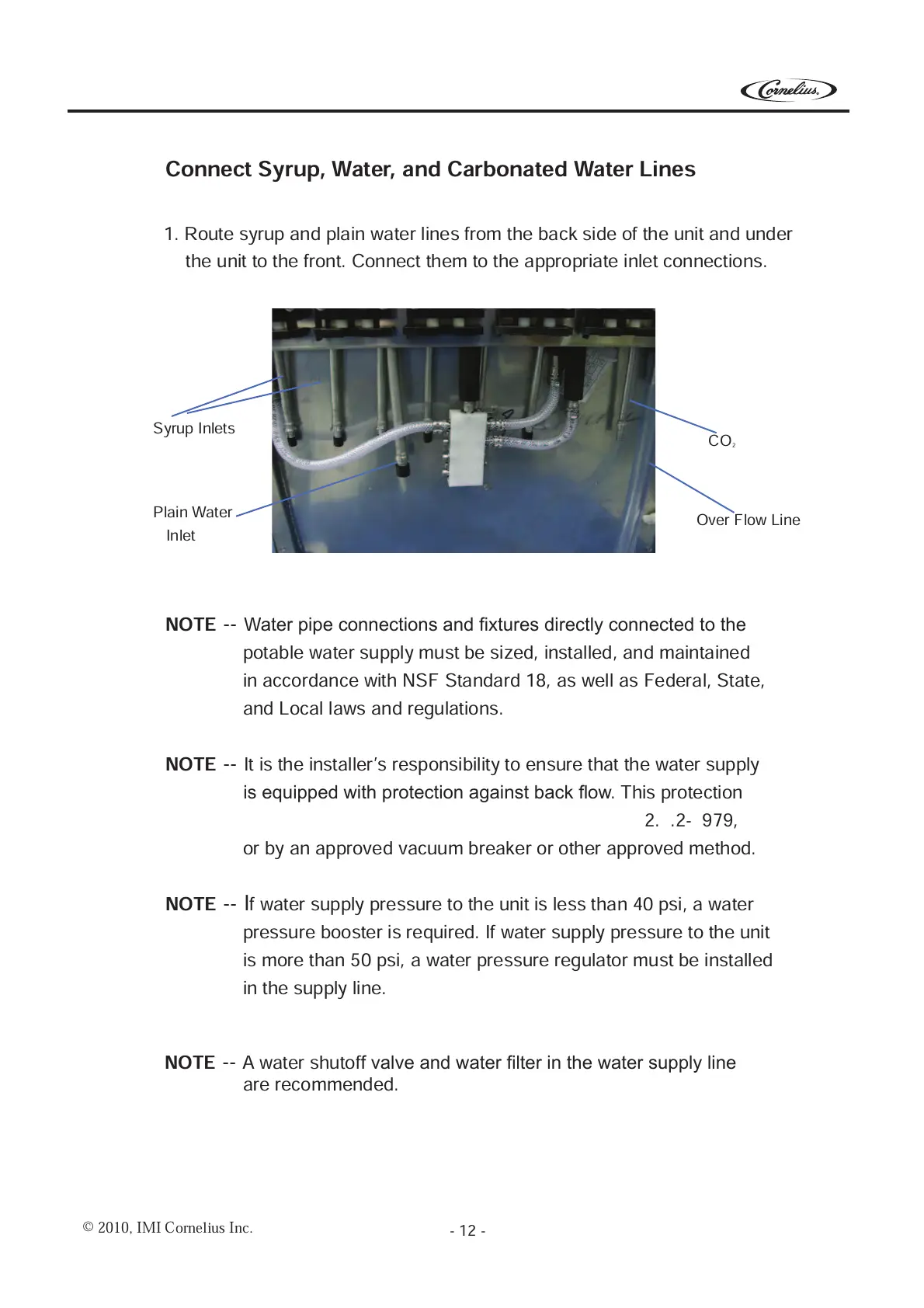

Connect Syrup, Water, and Carbonated Water Lines
1. Route syrup and plain water lines from the back side of the unit and under
the unit to the front. Connect them to the appropriate inlet connections.
CO
2
Plain Water
Inlet
NOTE
-- W ater pipe connections and !xtures directly connected to the
potable water supply must be sized, installed, and maintained
in accordance with NSF Standard 18, as well as Federal, State,
and Local laws and regulations.
NOTE
-- It is the installer’s responsibility to ensure that the water supply
is equipped with protection against back "ow . This protection
can be an air gap as de!ned by ANSI/ASME A112.1.2-1979,
or by an approved vacuum breaker or other approved method.
NOTE
-- If water supply pressure to the unit is less than 40 psi, a water
pressure booster is required. If water supply pressure to the unit
is more than 50 psi, a water pressure regulator must be installed
in the supply line.
NOTE -- A water shutof f valve and water !lter in the water supply line
are recommended.
Syrup Inlets
Over Flow Line
