Cornelius VIPER FMFV - Page 19

FMFV - Installation Manual
Publication Number: 919000012INS - 15 - © 2018-19, Cornelius Inc.

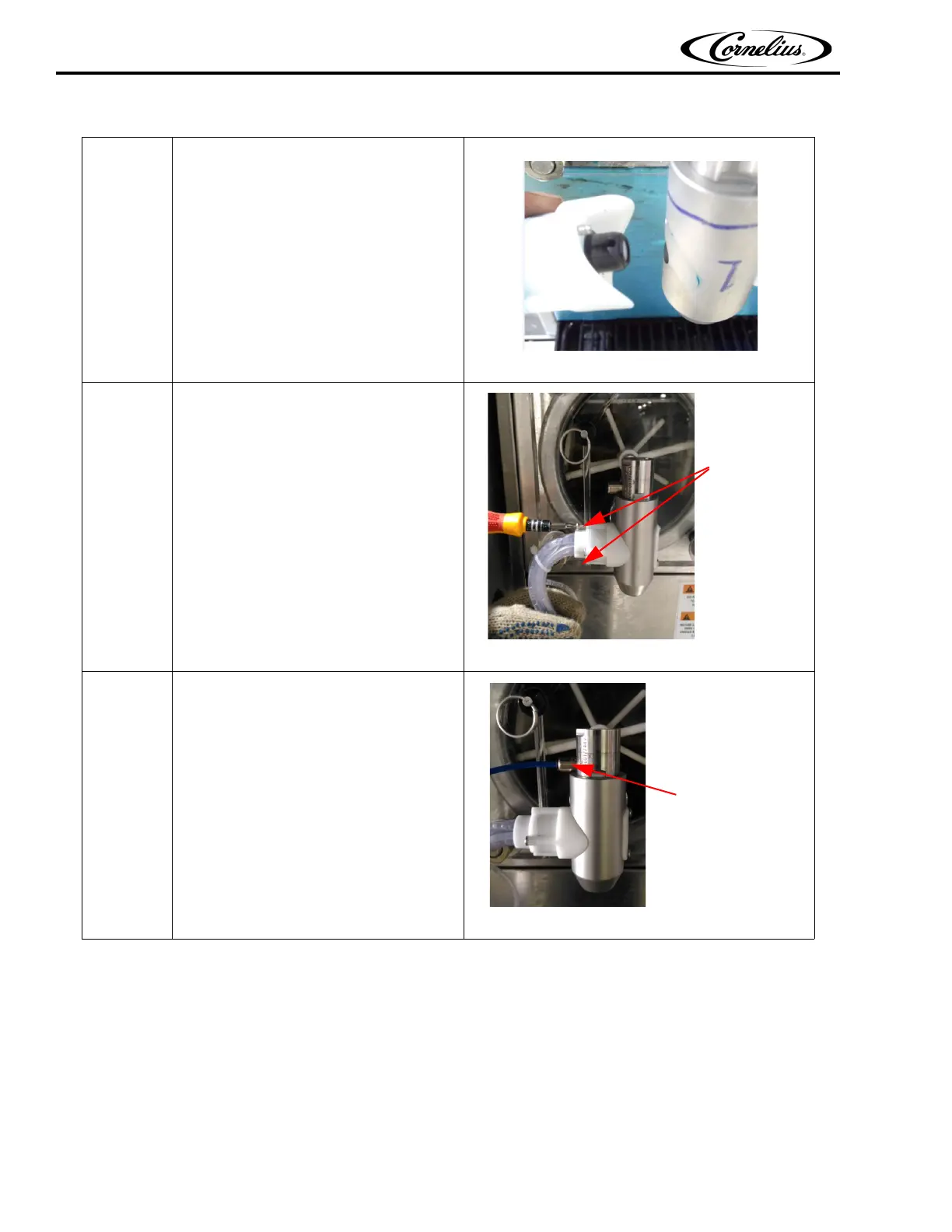

14.
Assemble Injector cap with injector
module.
Insert the Injector module along with
injector cap in to the Valve body.
Figure 22.
15.
Fasten the injector module to valve
body by screw
Use #1 Phillips screw driver
NOTE: To change valve to right
side of the unit, need to
interchange dummy cap
and injector module
accordingly.
Figure 23.
16.
Air inlet hose (blue colour hose) goes
into the Quick connector in the
pneumatic valve and ensure the hose
fixed properly.
Figure 24.
Table 5: Installation of Valve
Screws
Quick Connector
