CUSTOMER MANUAL M400 DRIVE SYSTEM

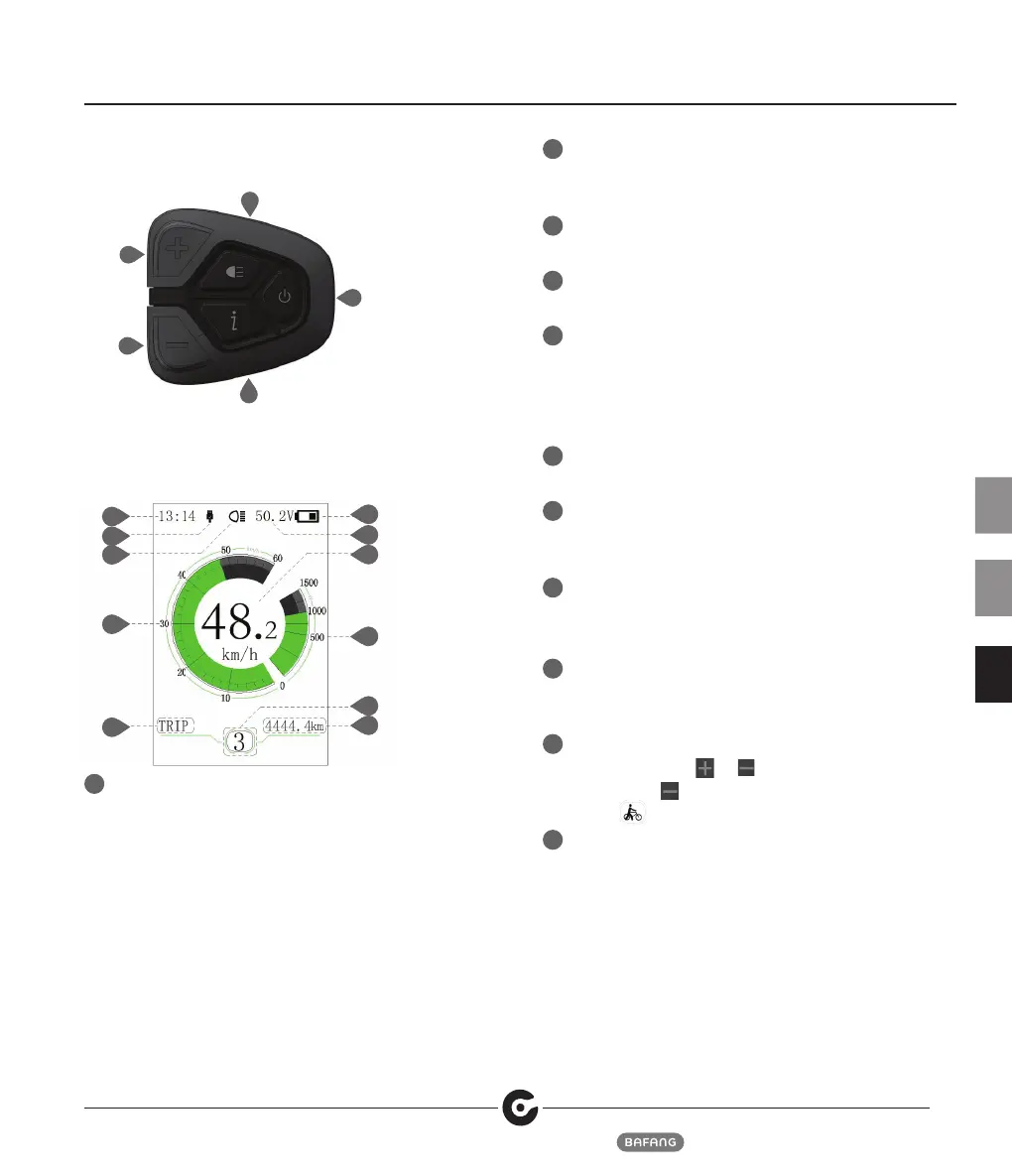

6 DISPLAYS AND SETTINGS
6.1 Buttons on the control panel
ON/
OFF
Up
Down
Mode
Headlight
6.2 Indications on the Display
Screen
1
2
3
4
5
6
7
8
9
10
11
1
Time indication:
The time is represented in the 24-hour system and
show the current time, time can be set in the“Set
clock”.
2
USB charge indication:
When external connect into the display, it display the
symbol.
3
Headlight indication:
Only shows when headlight is on.
4
Speed scale display:
The scale value is in accordance with the digital value.
5
Mode selection:
single-trip distance (TRIP) → total distance ODO → max-
imum speed (MAX) → average speed (AVG) →remaining
distance (RANGE) → energy consumption (CALORIES)
→ time (TIME).
6
Battery indication:
Indicate current battery level value.
7
Voltage indication/percentage indication:
Indicate actual battery level value, display mode can be
set in the “Soc View”.
8
Speed digital indication:
Display current speed value, speed unit can be set
in“Unit”.
9
Power scale indication/current scale indication:
Display current output value, output unit can be set
in“Power View”.
10
Power assistantance level indication/push assistance:
Briefly press (0.5S)
or to switch the level. Touch
and hold (2S) to start the mode “ push assistance”,
display symbol.
11
Mode data indication:
Display current data corresponding to the mode.
