* Equipment available depending on version.
We reserve the right to modify the product and the design.
54
USER
MANUAL
front differential oil (CHECK and change)
CHECK:
To check the front dierential oil level, you have to drain the oil into a cal-
ibrated container and measure the amount that has been extracted. The
correct volume is 0.5 L.
CHANGE:
The oil must be changed periodically, to ensure the life of the dierential, as
indicated in the Service Chart (see page xx/xx).
1. Park the vehicle in a totally horizontal position.
2. Remove the front underbody protection before starting the operation
(page X) and the inside of the hood if there is one.
3. Place a container under the dierential to collect the used oil and avoid
any spillage.

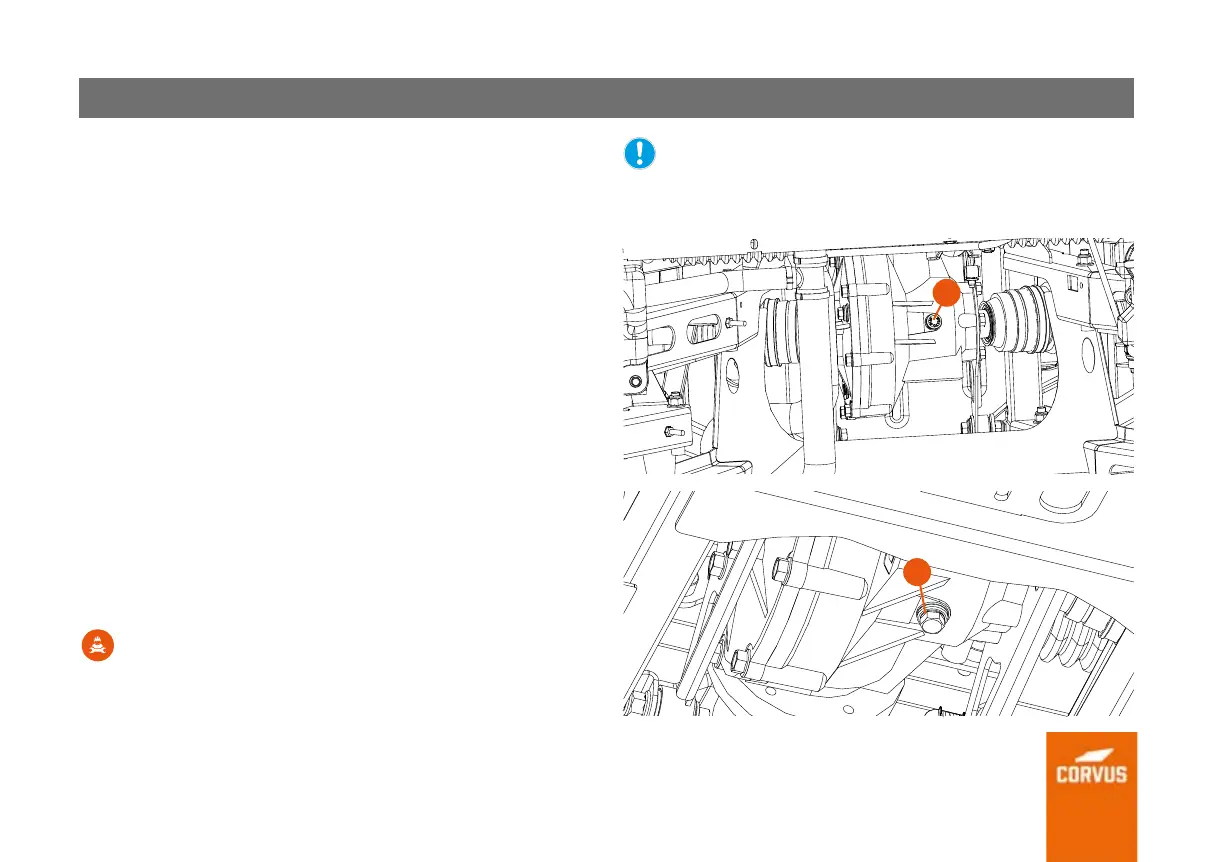

5. Remove the filler plug/screw (1), to facilitate better drainage
of the oil.
6. Remove the drain cap/screw (2) and wait until all the content has
emptied out.
7. Screw on the drain plug/screw (2) and tighten the drain plug, replacing
the washer, securing it at 24 Nm.
8. Fill the front dierential with the new oil.
9. Screw on and make sure the corresponding filler plug/screw (1) is tight,
replacing its washer, securing it at 24 Nm.
10. Check that there are no leaks and that the seals are in good condition.
TECHNICAL INFORMATION:
Recommended oil: SAE 80W-90, API GL5.
Capacity: 0.5 L.
NEVER drive the vehicle with no or low oil in the front dierential.
It is important that you are familiar with the maintenance intervals
for the components shown in the service chart.
1
2
