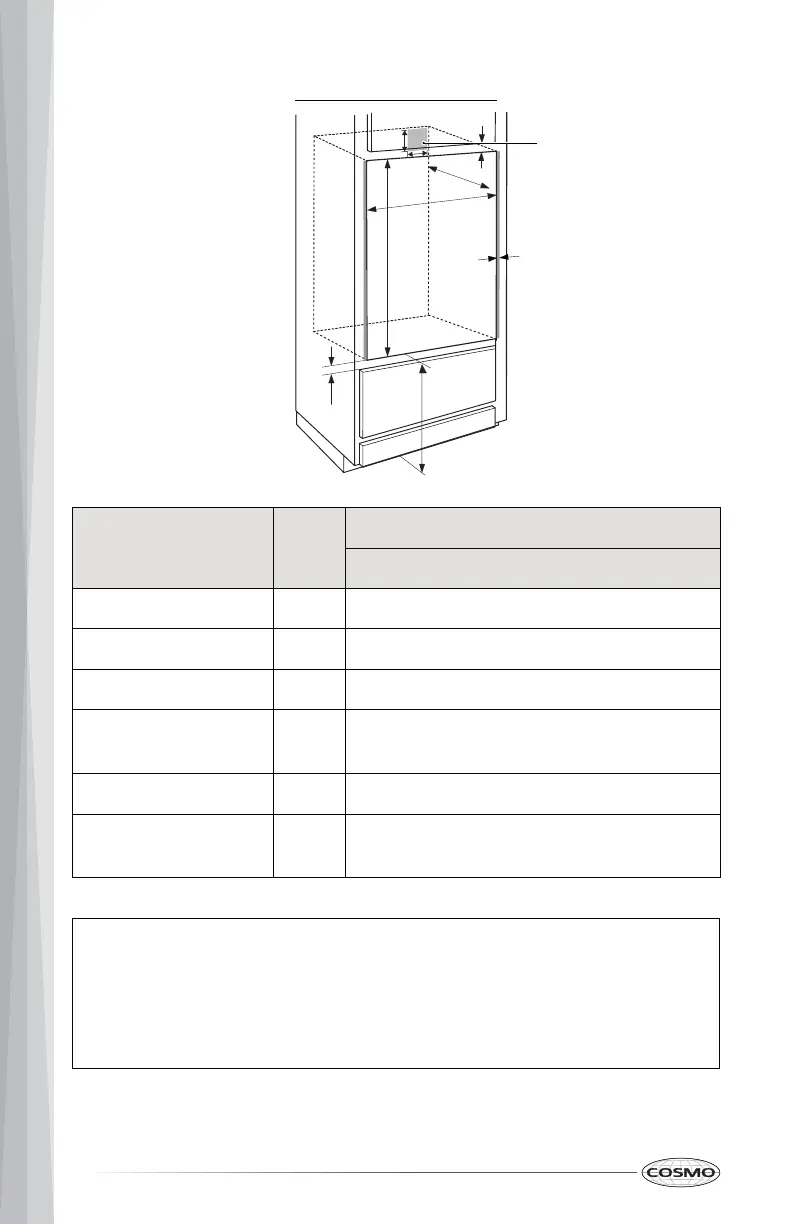

Double Oven in Cabinet
Dimensions Letter
Double Oven Measurements
Cabinet
A Width (Cutout) 28 5/8" (72.7 cm)
B Depth (Cutout)
23 13/16" (60.5 cm)
C Height (Cutout)
50 1/4" (127.7 cm)
D
Clearance to Upper/
Lower Cabinet Door
1 1/2" (3.8 cm)
E Oven Side Overlap 11/16" (1.7 cm)
F
Cutout to Floor
(Recommended)
14 3/4" (37.5 cm)
NOTE:
• If the cabinet does not have a front frame and the sides are less than
3/4" (1.9 cm) thick, shim both sides equally to establish the cutout width.
• These ovens are not approved for installations that stack one single
wall oven above another single wall oven.
D
C
A
B
F
E
4"
D
Electrical Junction
Box Location
