11

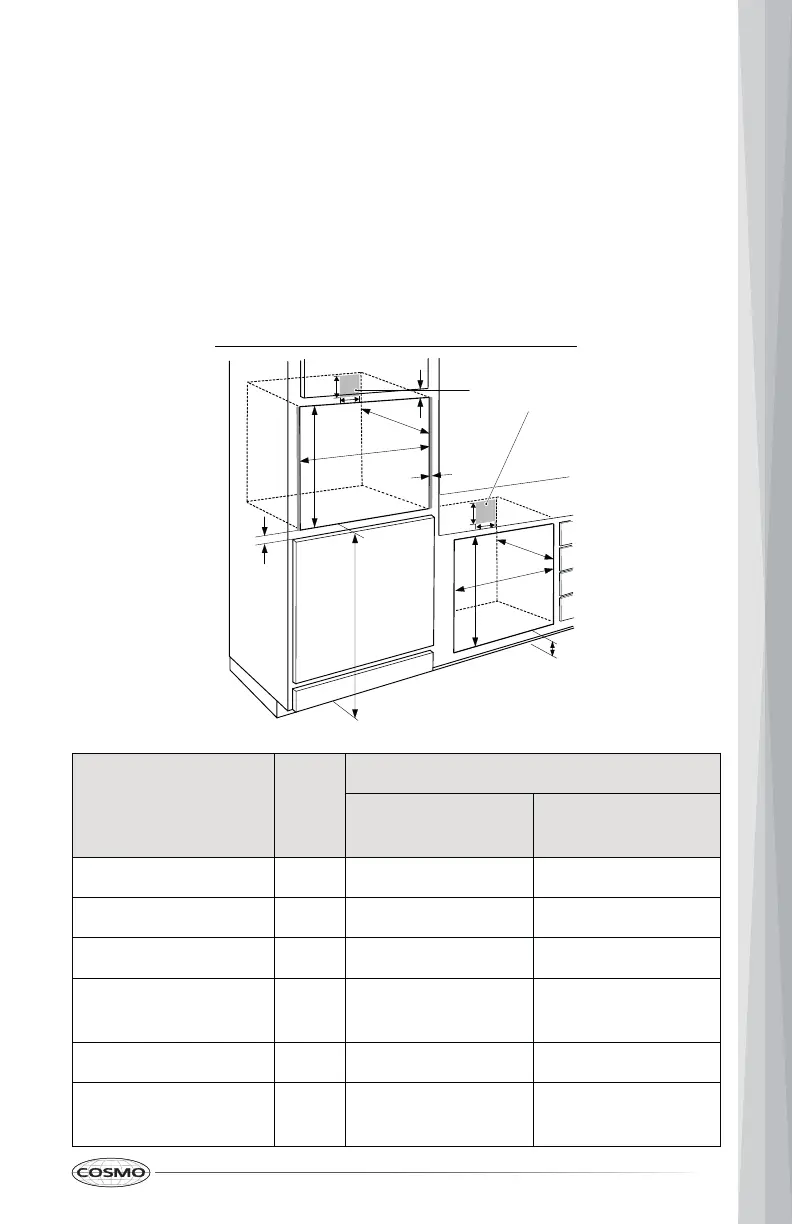

CUTOUT DIMENSIONS
IMPORTANT: Some cabinet and building materials are not designed to
withstand the heat produced by the oven for baking and self-cleaning. Check
with your builder or cabinet supplier to make sure that the materials used will
not discolor, delaminate or sustain other damage.
GIVEN DIMENSIONS ARE MINIMUM CLEARANCES.
Single Oven in Cabinet and Under Counter
Dimensions Letter
Single Oven Measurements
Cabinet
Under Counter
without Cooktop
A Width (Cutout) 28 5/8" (72.7 cm) 28 5/8" (72.7 cm)
B Depth (Cutout) 23 13/16" (60.5 cm) 23 13/16" (60.5 cm)
C Height (Cutout) 27 5/8" (70.1 cm) 27 5/8" (70.1 cm)
D
Clearance to Upper/
Lower Cabinet Door
1 1/2" (3.8 cm) N/A
E Oven Side Overlap 11/16" (1.7 cm) 23 5/16" (59.2 cm)
F
Cutout to Floor
(Recommended)
32" (81.3 cm) 5 1/4" (13.3 cm)
A
F
E
4"
C
B
D
D
B
A
C
F
4"
Electrical Junction
Box Location
