8) Position the left non-motor-side jack in the
remaining corner of the Covana cover. The
square shaft at the bottom of the jack should
face toward the motor frame, and the U-frame
bracket should be inwards. If not, review the
previous steps to assemble the left and right
post feet.

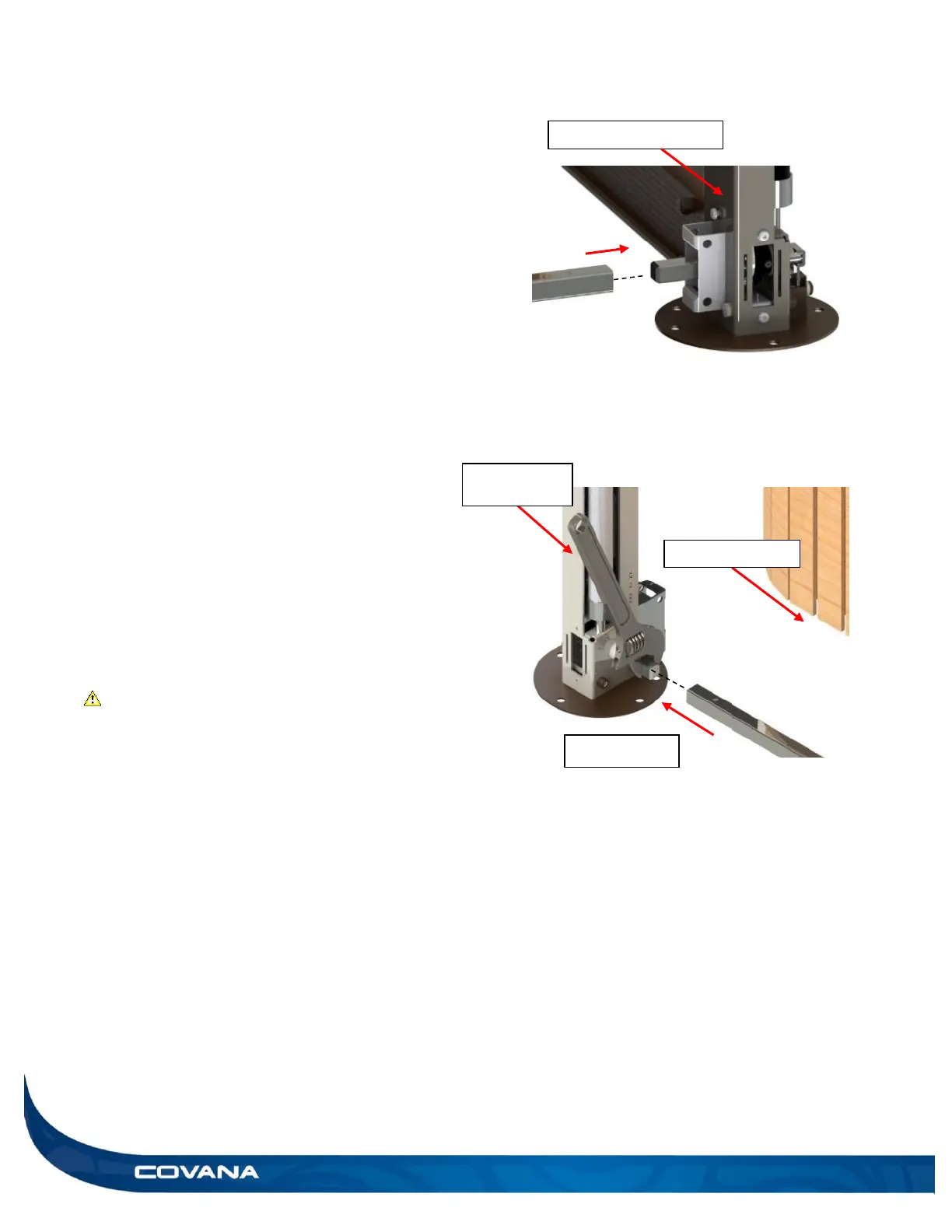

9) Slide the drive shaft over the square shaft
located at the bottom of the left motor-side jack.
(Figure 55) Note: The drive shafts are in the two
long U-frames. Tear the plastic film to locate
them.
10) Hold the left-hand non-motor-side jack
assembly upright and in line with the left drive
shaft. Use a 3/4″ adjustable wrench to carefully
rotate the square shaft of the jack so it aligns
with the drive shaft. (Figure 56)
CAUTION
Make sure the driveshaft is fully installed before
proceeding further in the installation process.
Using the jack without the driveshaft’s being
properly connected may cause injury.
