18

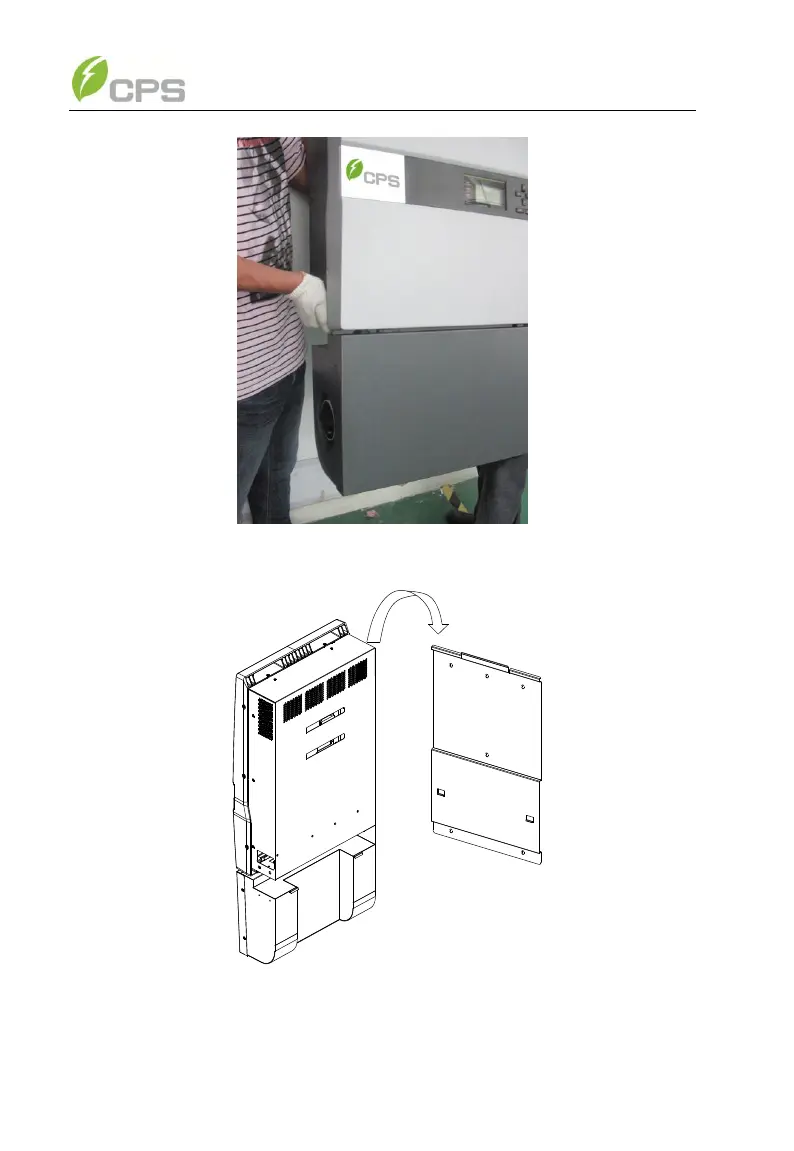

Figure 3-7d Mounting inverter on the bracket
Figure 3-7e Mounting inverter on the bracket
(f) Put the two removed panels back and secure them with 4 M4*12
