98
(4) Attached the new cooling fans on the fan tray and fasten the cable on
the fan tray with cable ties.
Torque value: 1.6 Nm (14.2 in-lbs)
(5) Install the assembled fans back to the inverter.
Torque value: 1.6 Nm (14.2 in-lbs)

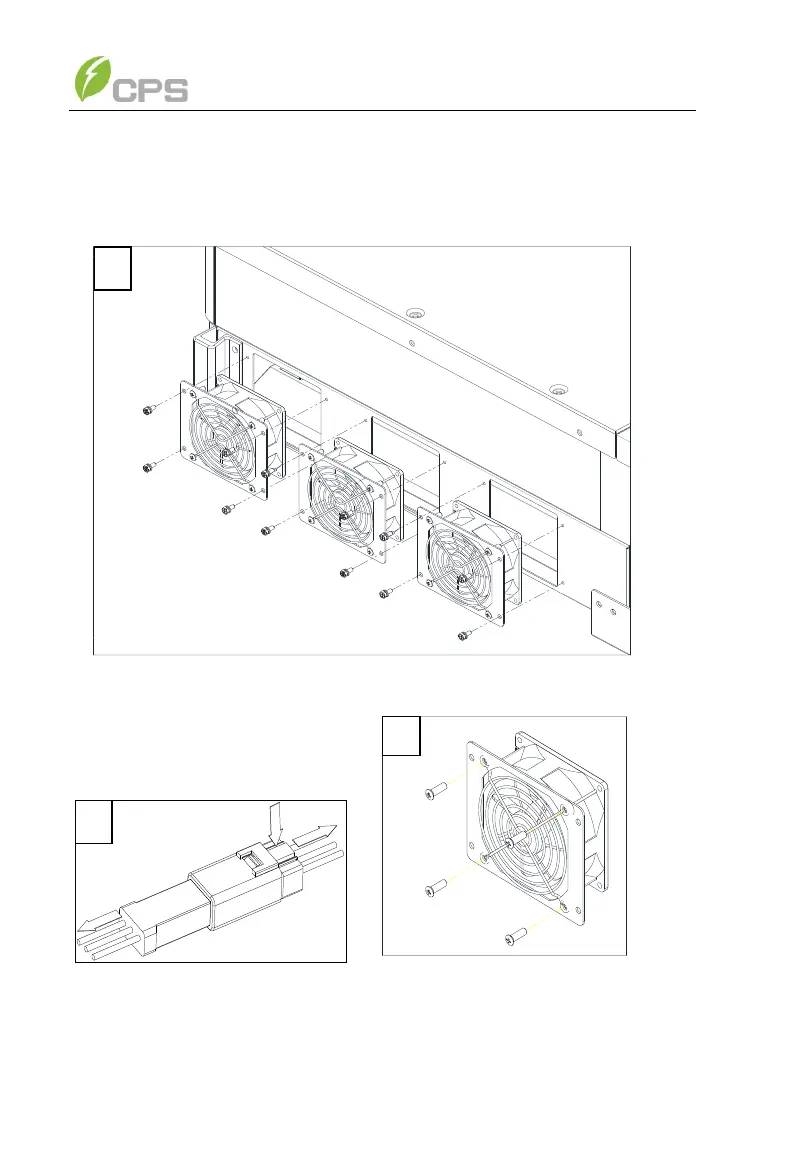

Figure 7-1 Replace cooling fans
