(4) Remove the screws connecting the inverter enclousure and
installation rail, then slide the inverter enclousure left on the rail
to remove.

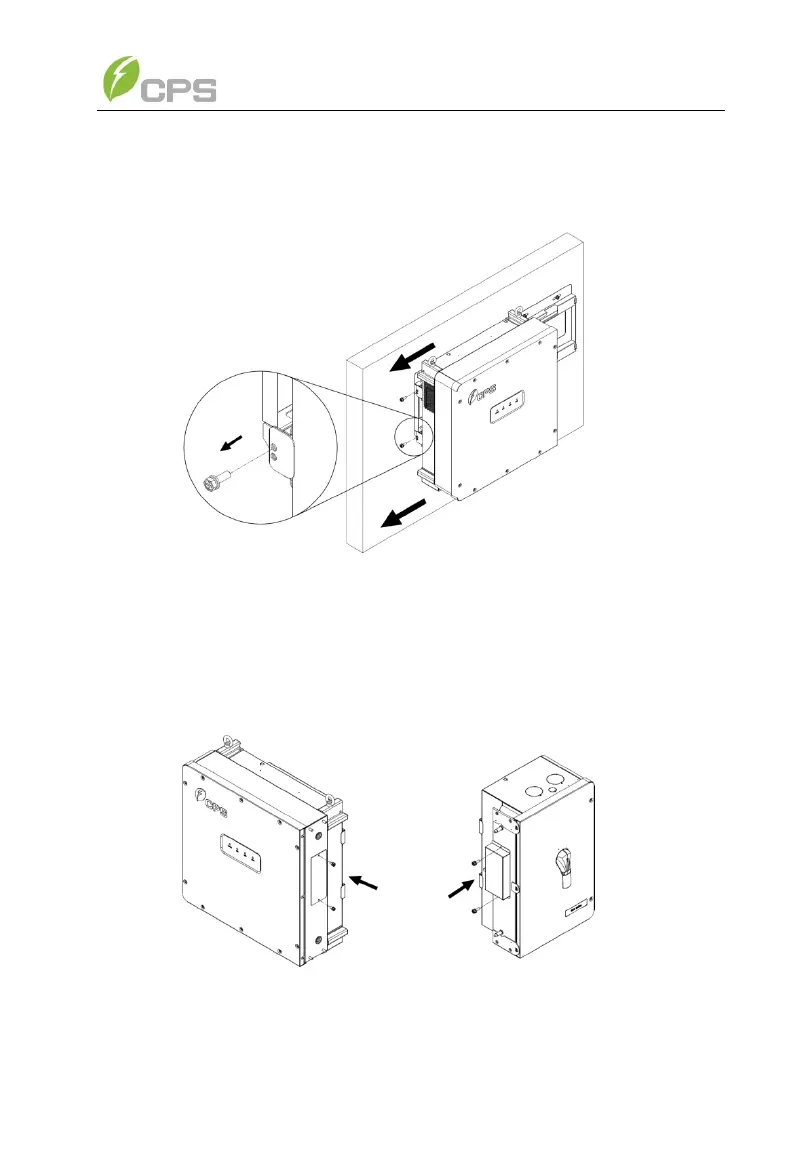

Figure 7-5 Remove the 2 screws between main housing and rail
(5) Use a No. 2 phillips head screwdriver to install the connector
covers on the connector of the wire-box and inverter. Torque
value: 1.6Nm (14.2 in-lbs)
Figure 7-6 Install the Cover on the Connector of the Wire-box
