100

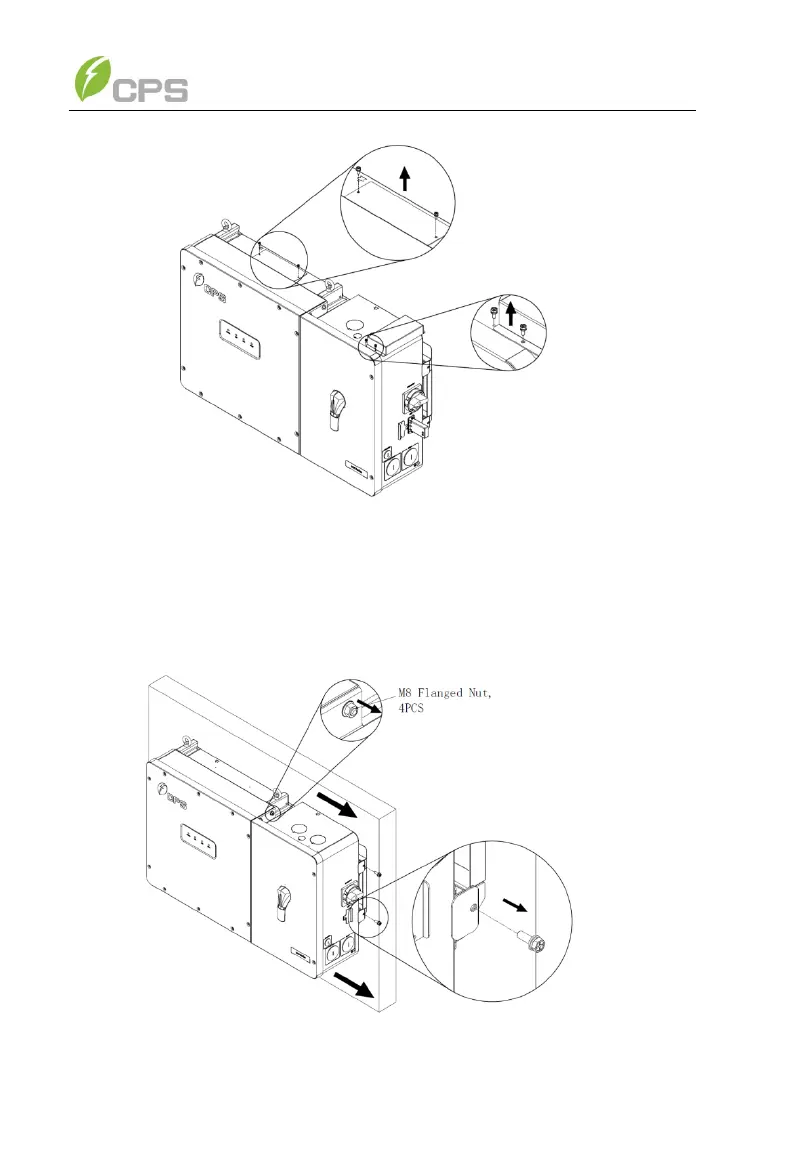

Figure 7-3 Remove the screws on both sides
(3) Use a 13mm hex head wrench to remove the 4 screws between
the main inverter enclosure and the wire-box. Slide the wire-box
right to disconnect the inverter from the wire-box.
Figure 7-4 Disconnect the main housing from the wire-box
