19

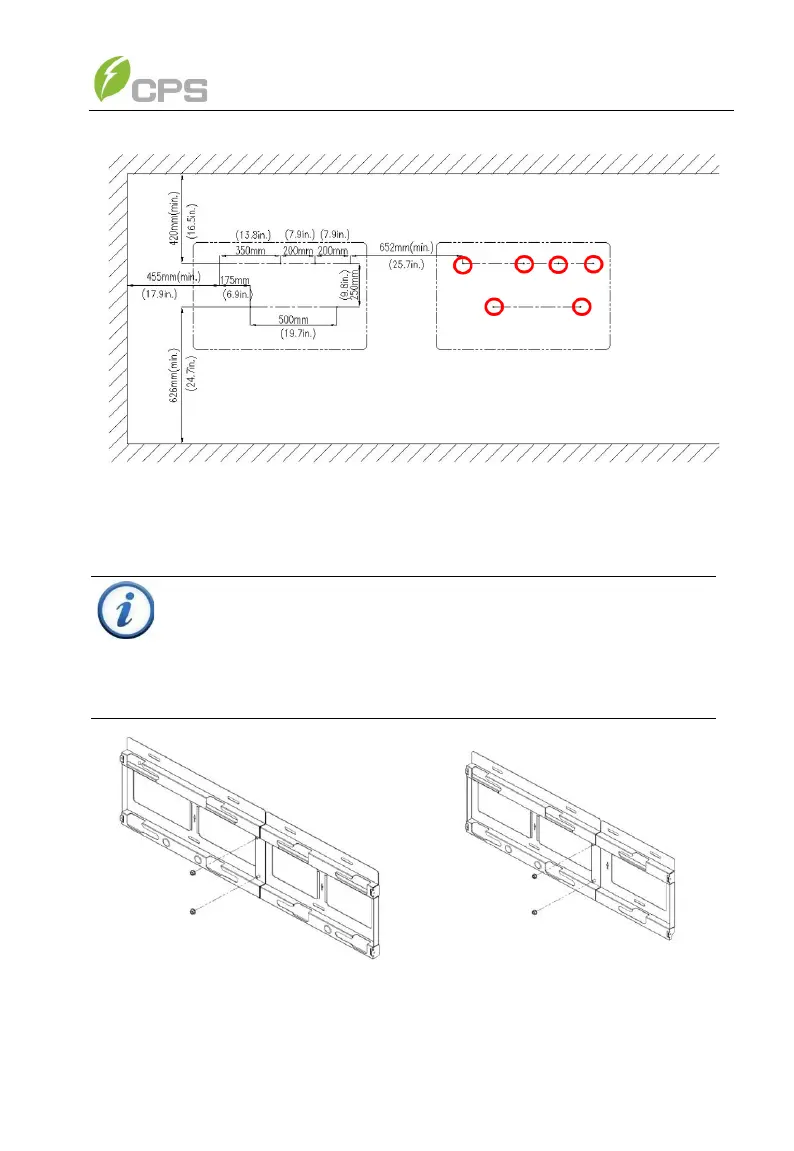

Figure 3-6b 100/125kW Centralized Wire-box Bracket Mounting Pattern
100/125kW Standard Wire-box
100/125kW Centralized Wire-box
Figure 3-7 Left and Right Wall Brackets Combination
INSTRUCTION:
Before installing the brackets, first connect the left and right wall
mounting brackets with 2 PCS M8 flange nuts (See Figure 3-7)
(torque 12.5 Nm (110 in-lbs))
