(2) Mounting the Bracket. Tools Required: Electric drill (Ф10mm/0.4in.
head), No. 13 wrench.
Drill holes at the marked positions with a 10mm (0.4in.) drill and insert
the M8 Expansion Anchors ① into the holes; fasten the Mounting
Bracket ② with the M8x25 Assembling Bolts ③ in the accessory
kit. Figure 3-8 and 3-9.

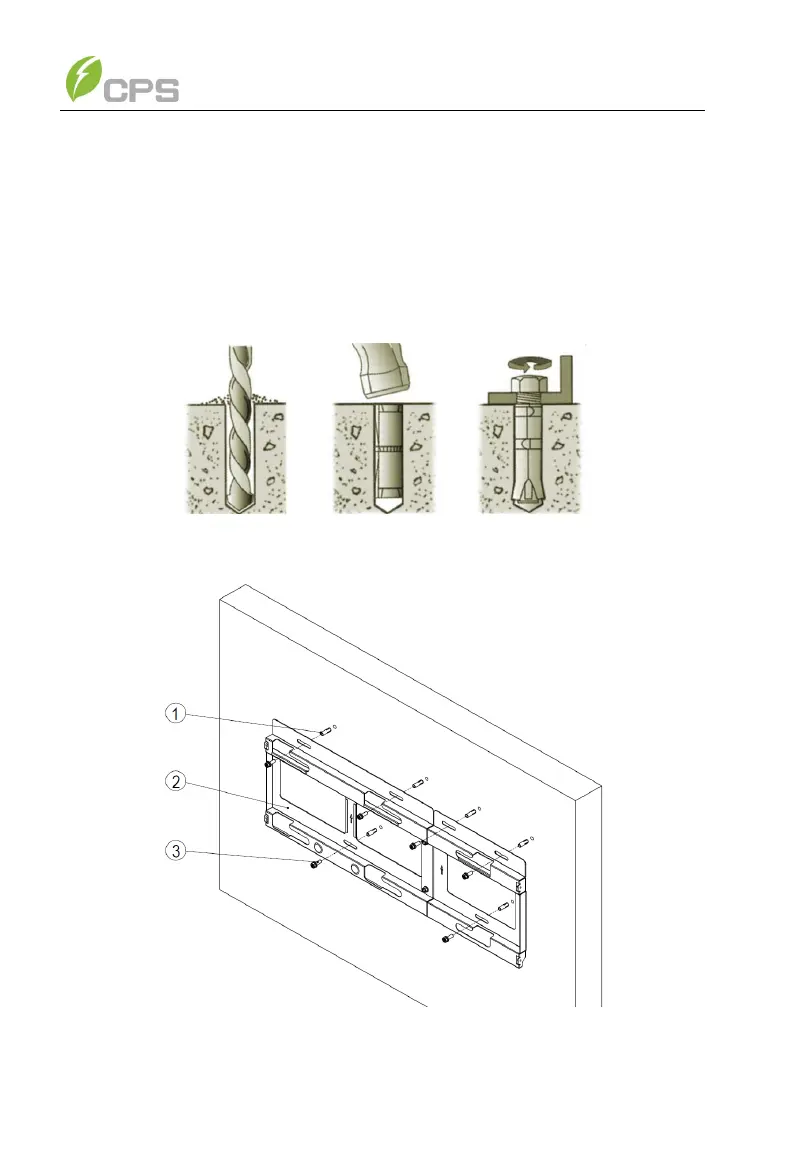

Figure 3-8 Drill holes, set Anchors, and tighten Assembling Bolts
Figure 3-9 Secure the Mounting Bracket
