(3) Install the Main Inverter Enclosure. Tool required: No. 2 Phillips
head screwdriver.
First remove the cover plate on the right of the main enclosure.
Reserve the screws and cover (Figure 3-10).

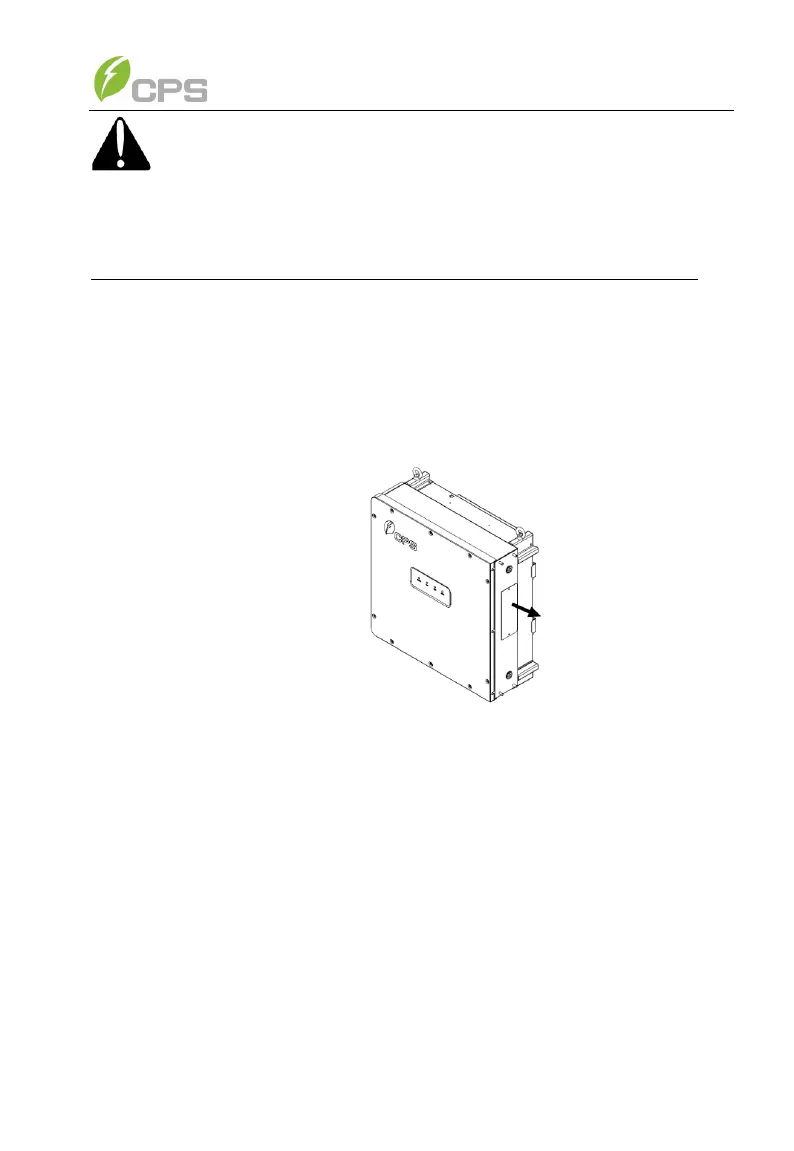

Figure 3-10 Remove the cover of Main Enclosure
Following method A or B, mount the main enclosure by aligning the
mark on the top of the main unit with the opening of the wall bracket
(Figure 3-11), setting the main enclosure in the track.
A. Lift mounting: screw two lifting eye bolts M10 (2pcs) into the studs
at the top of the inverter. Use sling rope or bar (inserted through
both lifting eye bolts) to lift the inverter onto the bracket. The
minimum angle between the two sling ropes should be less than
90 degrees (Figure 3-11).
CAUTION:
The main enclosure of the CPS SCH100KTL-DO/US-600,
SCH125KTL-DO/US-600 and SCH100KTL-DO/US-480 inverters is
approx. 55kg (121 pounds).
Ensure the mounting bracket is properly installed before hanging
the inverter on the bracket. It is recommended to have at least 2
people to mount the inverter due to the weight of the equipment.
