(7) Optional Anti-Theft Padlock.
The anti-theft padlock is used to prevent the inverter from being stolen
when the equipment is installed outdoors. You can lock the inverter
on the bracket, as shown in Figure 3-18:

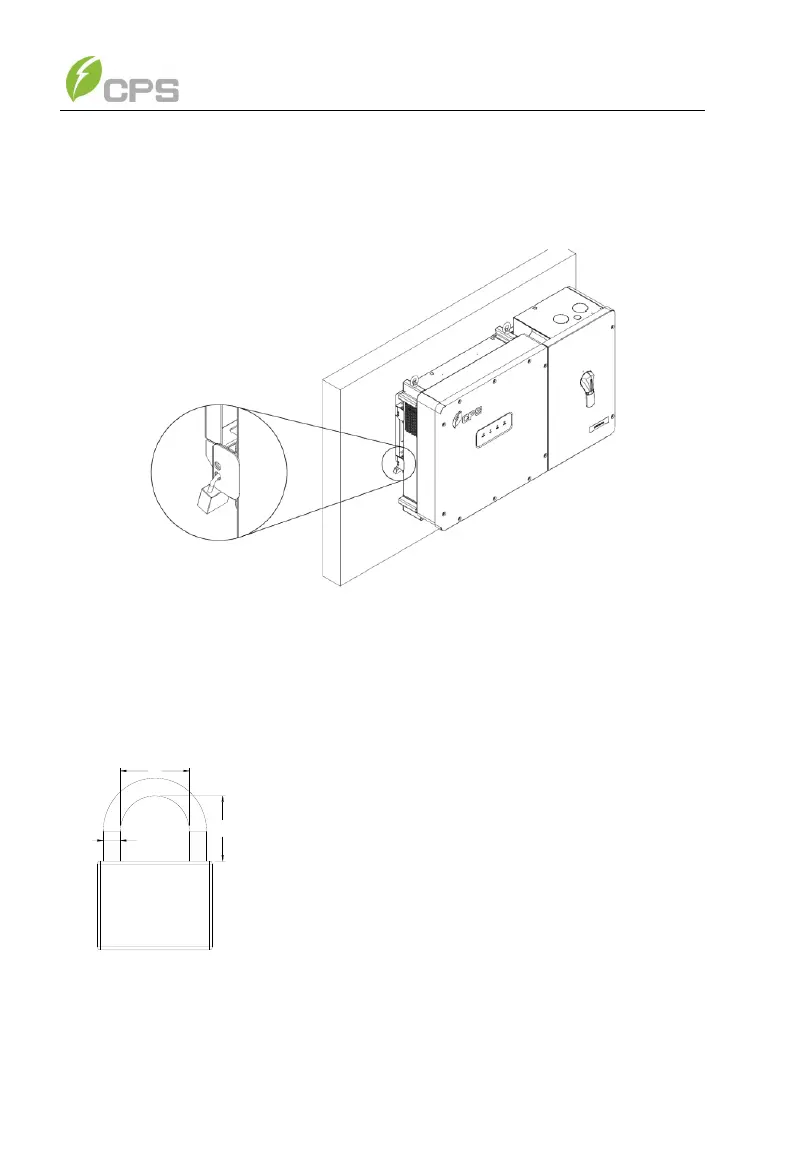

Figure 3-18 Location of the Anti-Theft Padlock
The anti-theft padlock should meet the requirement of the dimensions shown
in Figure 3-19.
B
C
A
Figure 3-19 Dimensions of Anti-Theft Padlock
Recommended lock size:
A: Ф3~6mm
B: 20~50mm
C: 20~50mm
