32

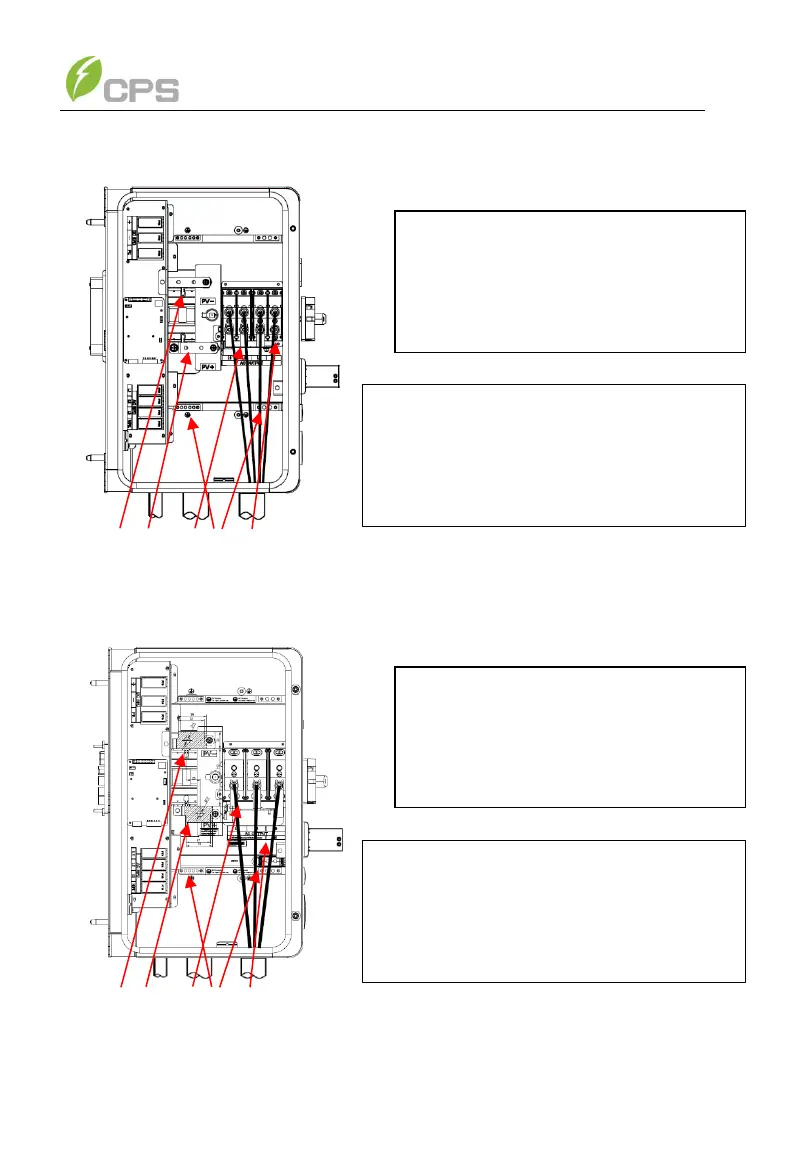

(2) Interior Wire-box Details
Figure 3-22A Internal Connection Points (Centralized Wire-box Ver #1)
Figure 3-22B Internal Connection Points (Centralized Wire-box Ver #2)
① Positive DC input connections
② Negative DC input connections
③ AC output terminals
④ Grounding terminals
⑤ Neutral Terminal
NOTE: 2-inch knockouts can be enlarged if the
hardware from the larger size does not interfere
with the installation of the cover or other
components. Enlarged holes should be centered
in the original hole if possible.
① Positive DC input connections
② Negative DC input connections
③ AC output terminals
④ Grounding terminals
⑤ Neutral Terminal
NOTE: 2-inch knockouts can be enlarged if the
hardware from the larger size does not interfere
with the installation of the cover or other
components. Enlarged holes should be centered
in the original hole if possible.
