6
BASE ASSEMBLY

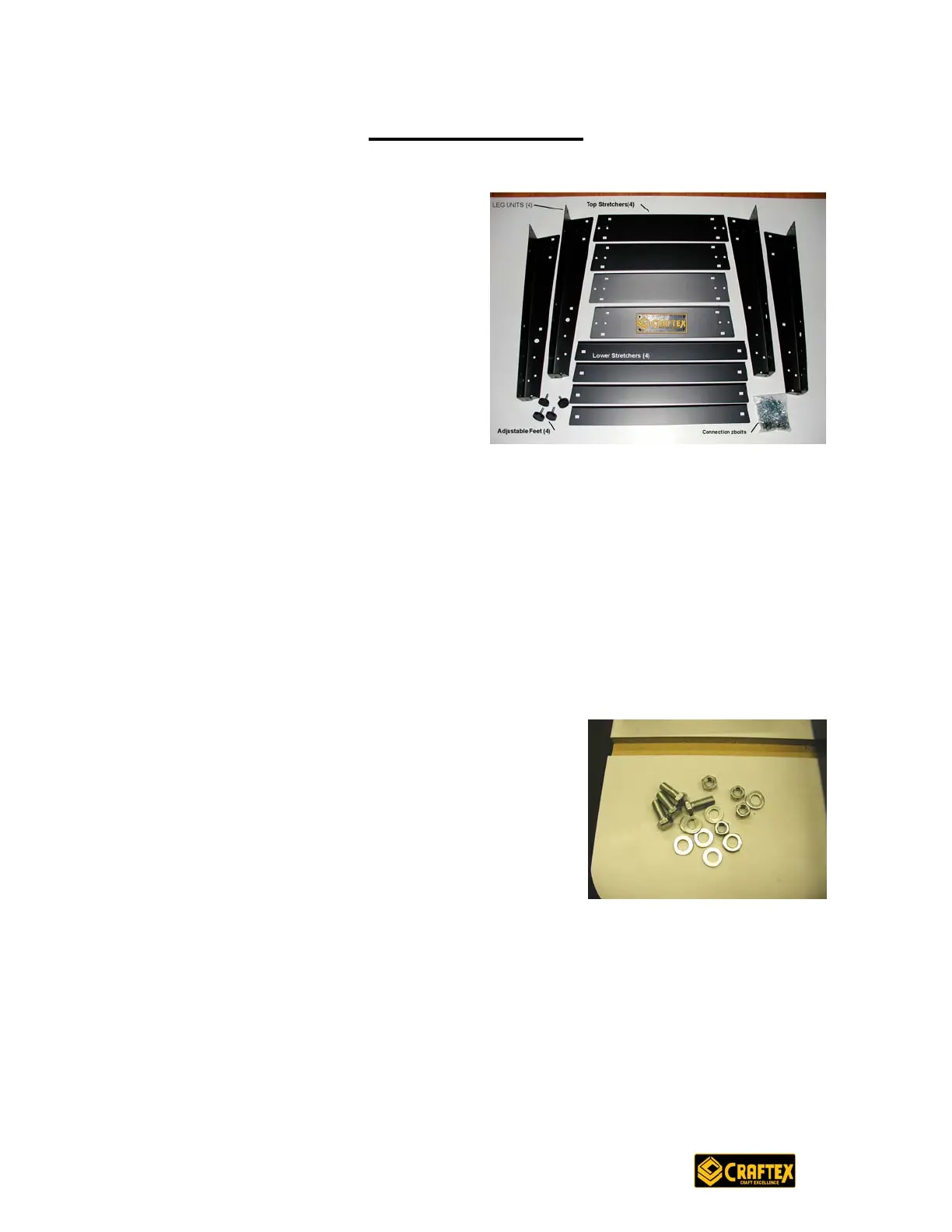

Remove all Sheet Metal Components from the box and set aside.
Remove the large plastic bag containing
miscellaneous small parts and remove
the small bag containing the zinc plated
nuts, washers and bolts.
Select the round head carriage bolts,
washers and nuts. The shorter
stretchers are for the top support of the base and have dents to fit them to the
legs. Use 1 carriage bolt, 1 washer and 1 nut in each of the square holes that
match the leg and stretcher. Do not tighten the nuts at this time.
Set the base on a level floor and using a spirit level, make sure that the top
surfaces of the steel base are level, commence tightening of the base nuts.
Select the black washers and nuts for use with the adjustable leveller feet and
install them on the base legs. Install 1 nut on the foot before inserting it in the leg.
Install a washer and the second nut but hand tighten only. Use a spirit level;
adjust all base feet by raising or lowering the bottom nut on the leg until the base
assembly is sitting level. Tighten the top nut down to secure the base legs.
You will be left with 4 zinc plated bolts, 8 washers
and 4 hex nuts. Set these aside for mounting the
table-saw to the base.
