Craftex CT015N - Mounting the Saw to the Base

13
STEP THREE:
MOUNTING THE SAW TO THE BASE
Parts required (with part#): Qty: Tools required:
1: band saw body 1 14mm wrench
14mm wrench socket
31: hex screws, 3/8” x 2” 4 flashlight
23: flat washers, 3/8” 4 Phillips screwdriver
flat washers, 1 1/4” 4
117: hex nuts, 3/8” 4
222: hex bolts, 3/16” x 3/4” 2
224: nuts, 3/16” 2
225: washers, 3/16” 4

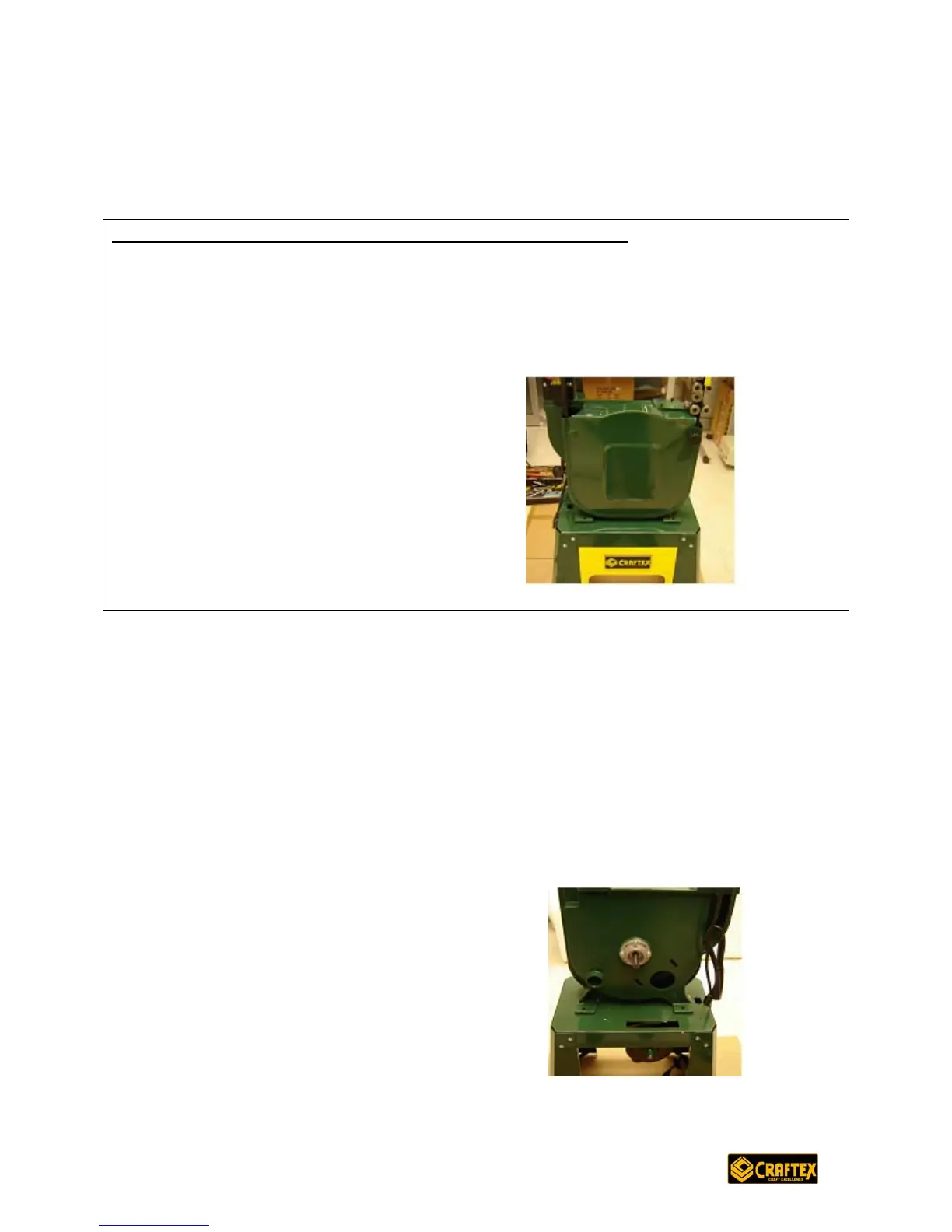

1. It is advisable to have a second person assist in lifting the band saw body (part
#1) onto the stand.
2. At the front of the saw stand, open the saw body cover. Thread a washer (#23)
through a hex bolt (#31) and drop into one of the corner holes on the saw body.
Tighten from below using 1 1/4”washer and nut (#117). Tighten only fingertip
tight for the time being.
3. Repeat for the remaining three corner holes until saw body is loosely bolted to
the stand.
