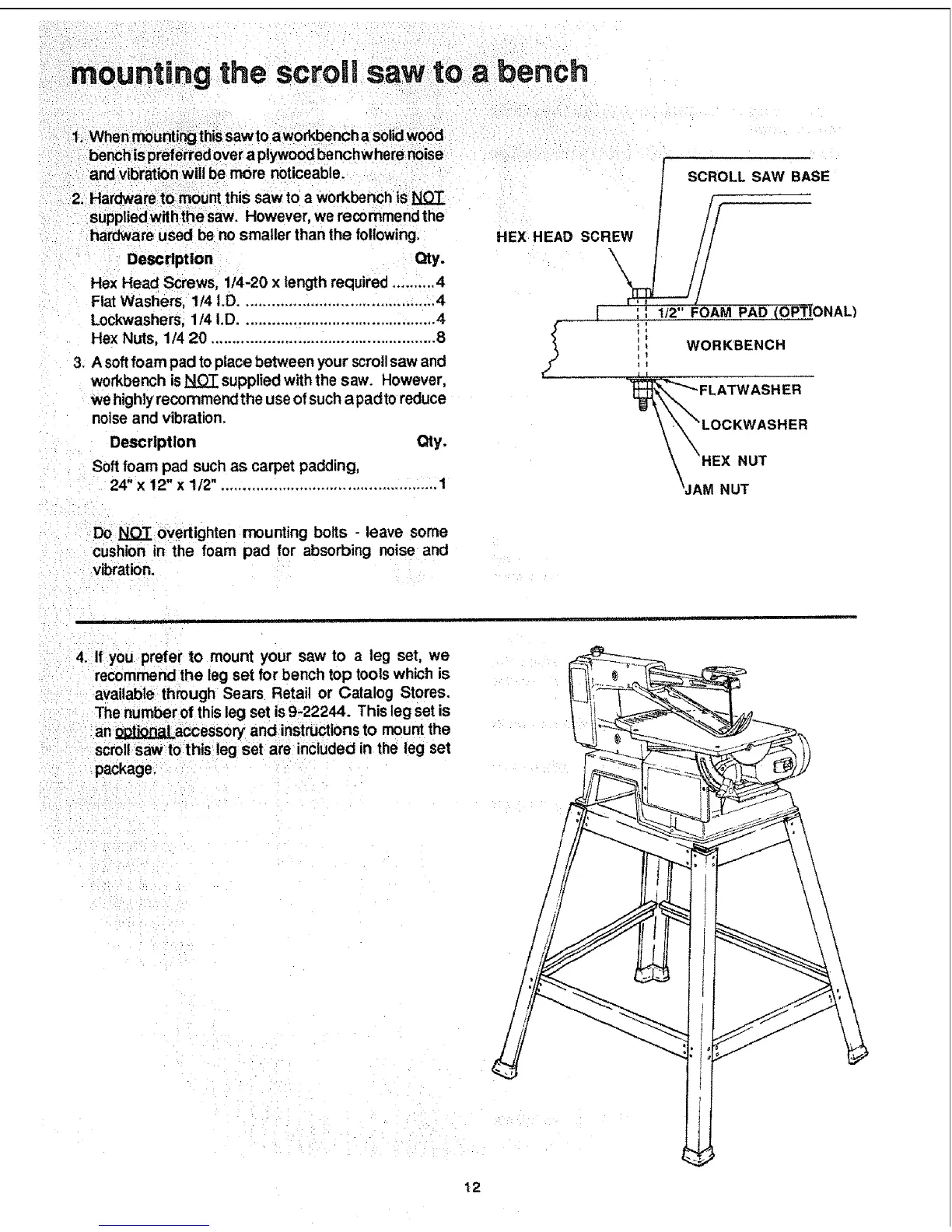

mount ng the scroll =sawto a bench
1. When mountingthis sawto aworkbench a solidwood
benchispreferred over a plywood benchwhere noise
and vibration will be more noticeable.
2. Hardware to mount this saw to a workbench is
suppliedwith the saw. However, we recommend the
hardware used be no smaller than the following.
Description Qty.
Hex Head Screws, 1/4-20 x length required .......... 4
Flat Washers, 1/4 I.D............................................. 4
Lockwashers, 114 I.D............................................. 4
Hex Nuts, 1/4 20 .................................................... 8
3, A softfoam pad toplace between your scrollsaw and
workbench is _ supplied with the saw. However,
we highly recommend the use of such a pad toreduce
noiseand vibration.
Description Qty.
Softfoam pad such as carpet padding,
24"x12" x l12" .................................................. 1
SCROLL SAW BASE
[w
HEX HEAD SCREW li
X
ATWASHER
:WASHER
_HEX NUT
\JAM NUT
Do _ oVerUghtenmounting bolts - leave some
cushion in the foam pad for absorbing noise and
vibration.
4. If you prefer to mount your saw to a leg set, we
recommend the leg set for bench top tools which is
available through Sears Retail or Catalog Stores.
The number of this leg set is9-22244. This leg set is
an_accessory and instructionsto mount the
scrollsaw to this leg set are included in the leg set
package.
