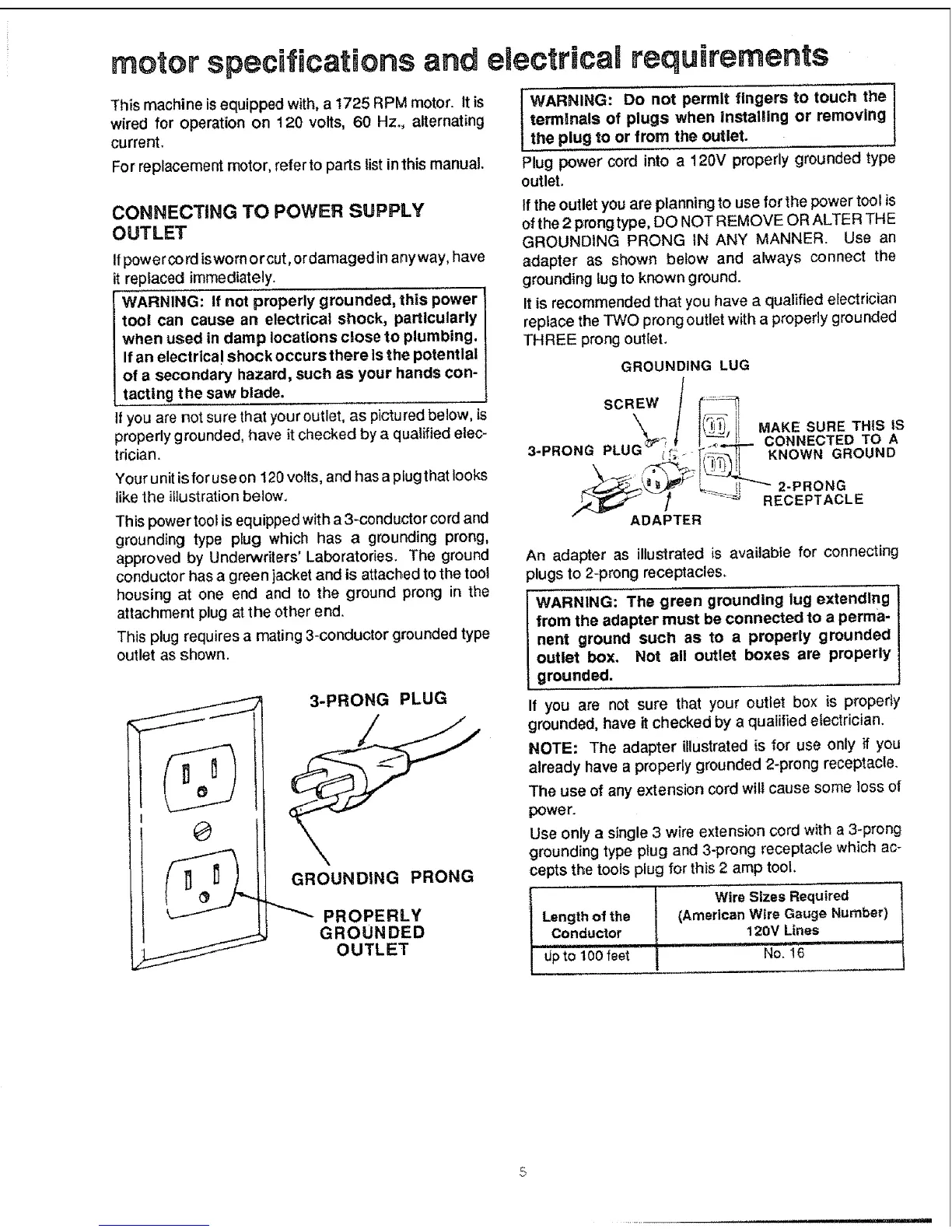

motor specifications and electricamrequirements
This machine isequipped with, a 1725 RPM motor. It is
wired for operation on 120 volts, 60 Hz, alternating
current.
For replacement motor, refer to parts listinthis manual.
t WARNING: Do not permit fingers to touch the I
terminals of plugs when installing or removing
I
the plug to or from the outlet.
Plug power cord into a 120V properly grounded type
outlet.
CONNECTING TO POWER SUPPLY
OUTLET
Ifpowercord iswornorcut, ordamaged inanyway, have
it replaced immediately.
WARNING: If not properly grounded, this power
too! can cause an electrical shock, particularly
when used in damp locations close to plumbing.
If an electrlca! shock occurs there is the potential
of a secondary hazard, Such as your hands con-
tacting t he saw blade.
Ifyou are not sure that your outlet, as pictu red below, is
properly grounded, have it checked by a qualified elec-
trician.
Your unit is for use on 120 volts, and has a plug thatlooks
like the iflustrationbelow.
This power toolis equipped with a 3-conductor cord and
grounding type plug which has a grounding prong,
approved by Underwriters' Laboratories. The ground
conductor has a green jacket and is attached to the tool
housing at one end and to the ground prong in the
attachment plug at the other end.
This plug requires a mating 3-conductor grounded type
outlet as shown.
I
O
3-PRONG PLUG
GROUNDING PRONG
PROPERLY
GROUNDED
OUTLET
If the outlet you are planning to use for the power tool is
of the 2 prong type, DO NOT REMOVE OR ALTER THE
GROUNDING PRONG IN ANY MANNER. Use an
adapter as shown below and always connect the
grounding tug to known ground.
It is recommended that you have a qualified electrician
replace the TWO prong outlet with a properly grounded
THREE prong outlet.
GROUNDING LUG
SCREW / {*:-=-_
/ l_,t_" 'i MAKE SURE THIS tS
............ CONNECTEDTOA
/ _'" RECEPTACLE
ADAPTER
An adapter as illustrated is available for connecting
plugs to 2-prong receptacles.
WARNING: The green grounding lug extending
from the adapter must be connected to a perma-
nent ground such as to a properly grounded
outlet box, Not all outlet boxes are properly
grounded.
If you are not sure that your outlet box is properly
grounded, have it checked by a qualified electrician,
NOTE: The adapter illustrated is for use only if you
already have a properly grounded 2-prong receptacle.
The use of any extension cord will cause some loss of
power.
Use only a single 3 wire extension cord with a 3-prong
grounding type pfug and 3-prong receptacle which ac-
cepts the tools plug for this 2 amp tool.
Length of the
Conductor
dpto 100 feet
Wire Sizes Required
(American Wire Gauge Number)
120V Lines
No. 16
= i1,11 I lllil
