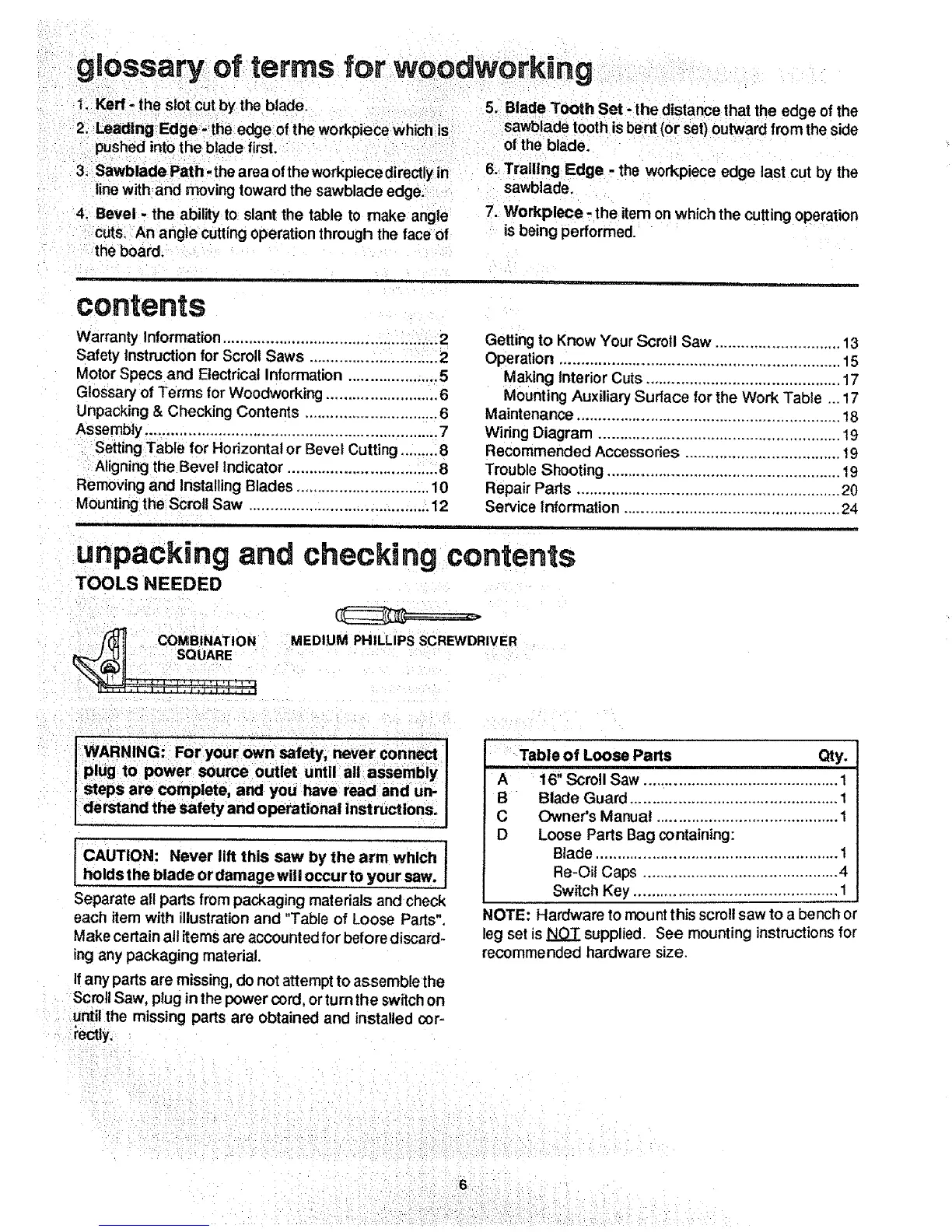

g ossary of terms for woodwork=rig
t. Kerr - the slot cut by the blade° 5. Blade Tooth Set - the distance that the edge of the
2. Leading Edge- the edge of the workpiece which is sawblade tooth is bent (or set) outward from the s de
pushed intothe blade first, ofthe blade.
3: Sawblade Path-the area ofthe workpiece directlyin 6. Trailing Edge - the workpiece edge last cut by the
linewith and moving toward the sawblade edge. sawblade.
4_ Bevel - the ability to slant the table to make angle 7. Workplece. the item on which the cutting operation
cuts, An angle cuttingoperation through the face of isbeing performed.
the board.
contents
Warranty Information.................................................. 2
Safety Instruction for Scroll Saws .............................. 2
Motor Specs and Electrical Information ..................... 5
Glossary ot Terms for Woodworking .......................... 6
Unpacking & Checking Contents ............................... 6
Assembly .................................................................... 7
Setting Table for Hodzontal or Bevel Cutting ......... 8
Aligning the Bevel Indicator ................................... 8
Removing and Installing Blades ............................... 10
Mounting the Scroll Saw .......................................... 12
11 i
Getting to Know Your Scroll Saw ............................. 13
Operation ................................................................. 15
Making Interior Cuts ............................................. 17
Mounting Auxiliary Surface for the Work Table ... 17
Maintenance ............................................................. 18
Wiring Diagram ........................................................ 19
Recommended Accessories .................................... 19
Trouble Shooting ...................................................... 19
Repair Parts ............................................................ 20
Service Information .................................................. 24
i=,1 = i .......... _: .
unpacking and checking contents
TOOLS NEEDED
/_ COMBINATION MEDIUM PHILLIPS SCREWDRIVER
CAUTION: Never lift this saw by the arm which I
I holds the blade or damage will occur to your saw. j
Separate a|l parts from packaging materials and check
each item with illustration and "Table of Loose Parts".
Make certain all items are accounted for before discard-
ingany packaging material.
Ifany parts are missing, do not attempt to assemble the
Scroll Saw, plug in the power cord, ortum the switchon
until the missing parts are obtained and installed cor-
_'ectly.
Table of Loose Parts Qty.
A 16" Scroll Saw ............................................. 1
B Blade Guard ................................................ 1
C Owner's Manual .......................................... 1
D Loose Parts Bag containing:
Blade ....................................................... 1
Re-Oil Caps ............................................. 4
Switch Key ............................................... 1
NOTE: Hardware to mount this scroll saw to a bench or
leg set is _ supplied. See mounting instructions for
recommended hardware size.
6
