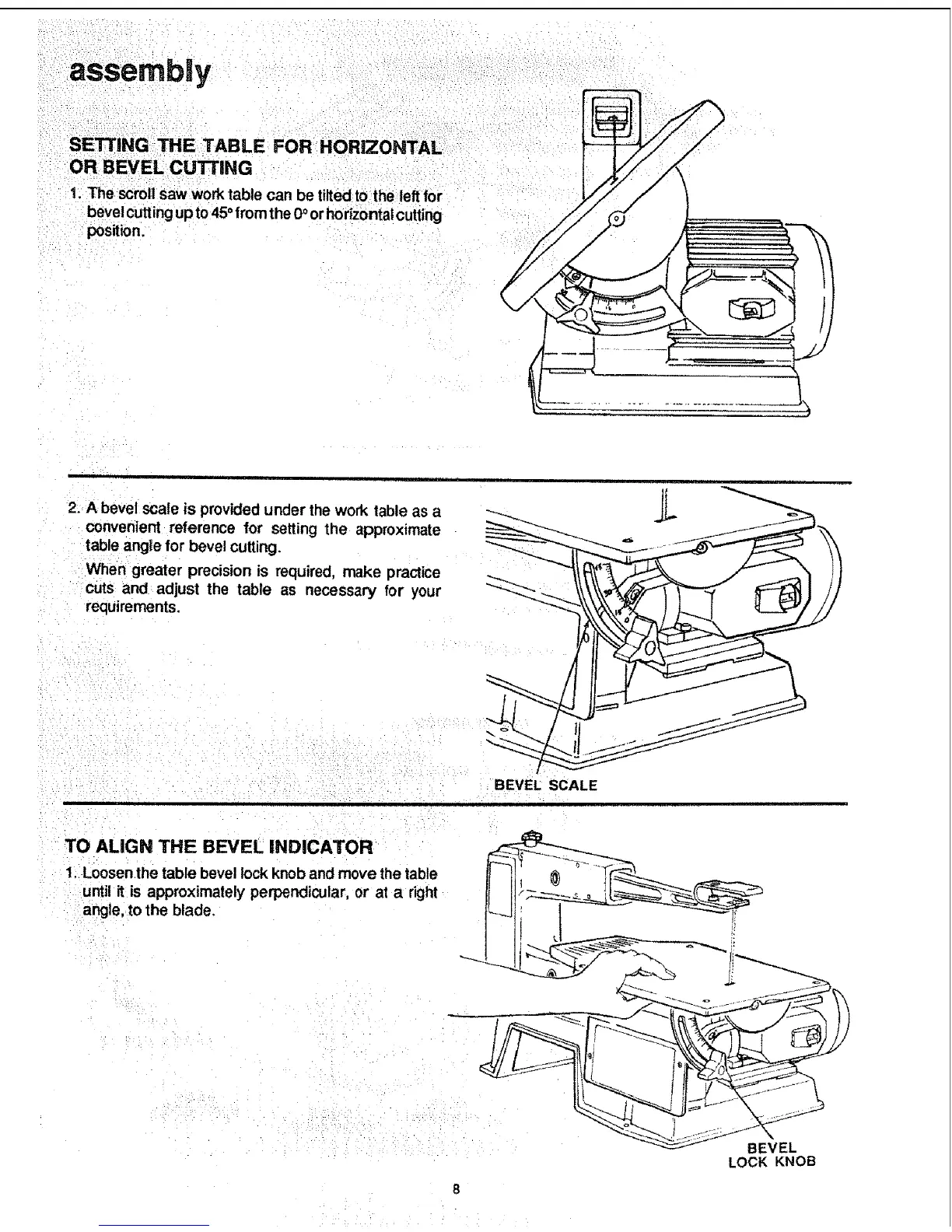

assembly
SETTING THE TABLE FOR HORIZONTAL
OR BEVEL CUTTING
1, The scroll saw work table can be tired to the left for
bevel curtingup to450from the 0oorhorizontal cutting
position,
2. A bevel scale is provided under the work table as a
convenient reference for setting the approximate
table angle for bevel cutting,
When greater precision is required, make practice
cuts and adjust the table as necessary for your
requirements.
BEVEL SCALE
TO ALIGN THE BEVEL iNDiCATOR
1. Loosen the table bevel lock knob and move the table
until it is approximately perpendicular, or at a right
angle, to the blade,
BEVEL
LOCK KNOB
