LIFT
HERE
A
DO NOT LIFT SAW BY THIS ARM
LIFT HERE

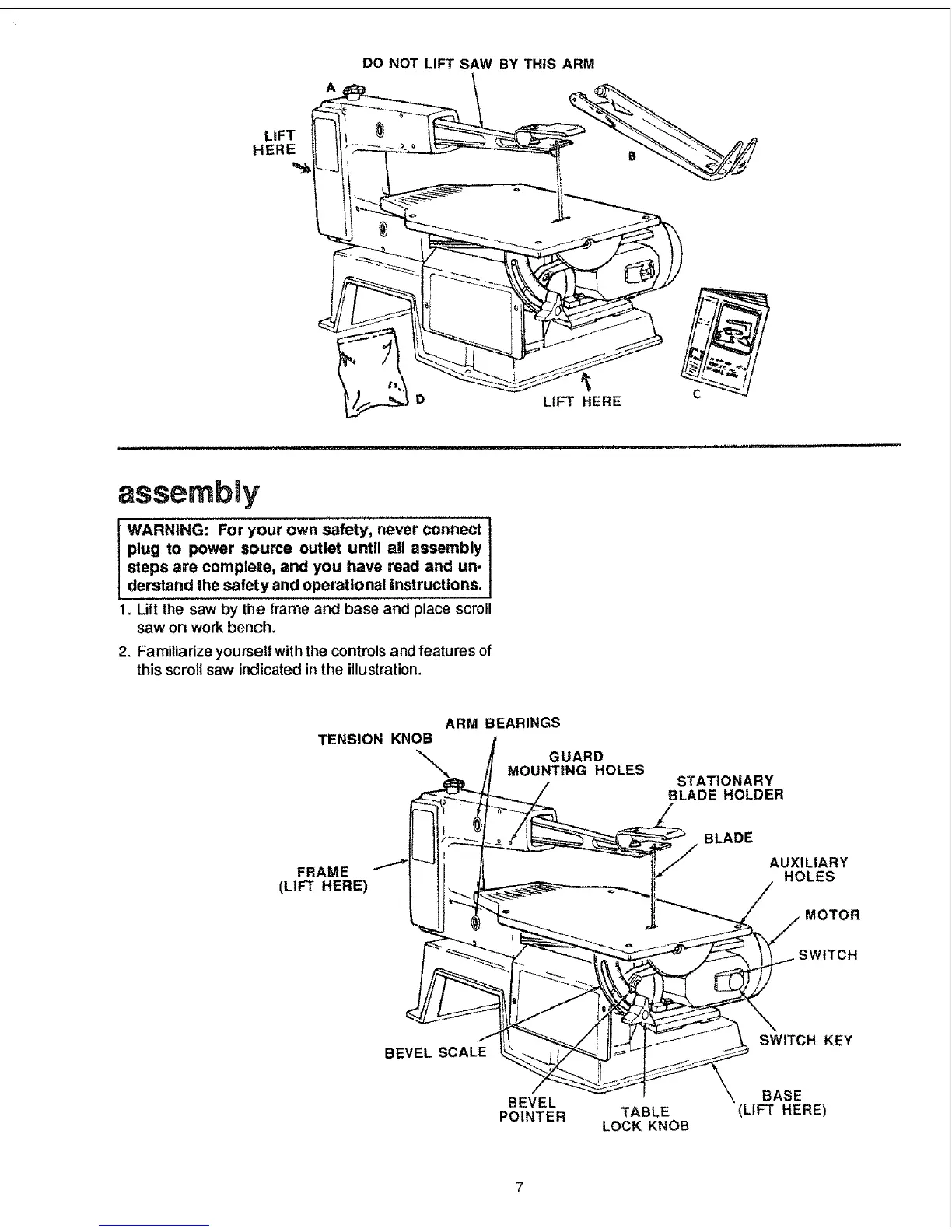

assembly
WARNING: For your own safety, never connect
plug to power source outlet until all assembly
steps are comptete, and you have read and un-
derstand the safety and operational instructions.
1. Lift the saw by the frame and base and place scroll
saw on work bench.
2. Familiarize yourself with the controls and features of
this scroll saw indicated in the illustration.
ARM BEARINGS
TENSION KNOB
GUARD
MOUNTING HOLES
STATIONARY
BLADE HOLDER
FRAME
(LIFT HERE)
BLADE
AUXILIARY
HOLES
MOTOR
BEVEL SCALE
SWITCH KEY
BEVEL
POINTER
TABLE
LOCK KNOB
BASE
(LIFT HERE)
