HARDWARE FEATURES (cont.)
Vertical Moving Truck
(Z-Truck)
Y-Truck Guide
Horizontal Moving Truck
(Y-Truck)
Z-Truck Guide Rails

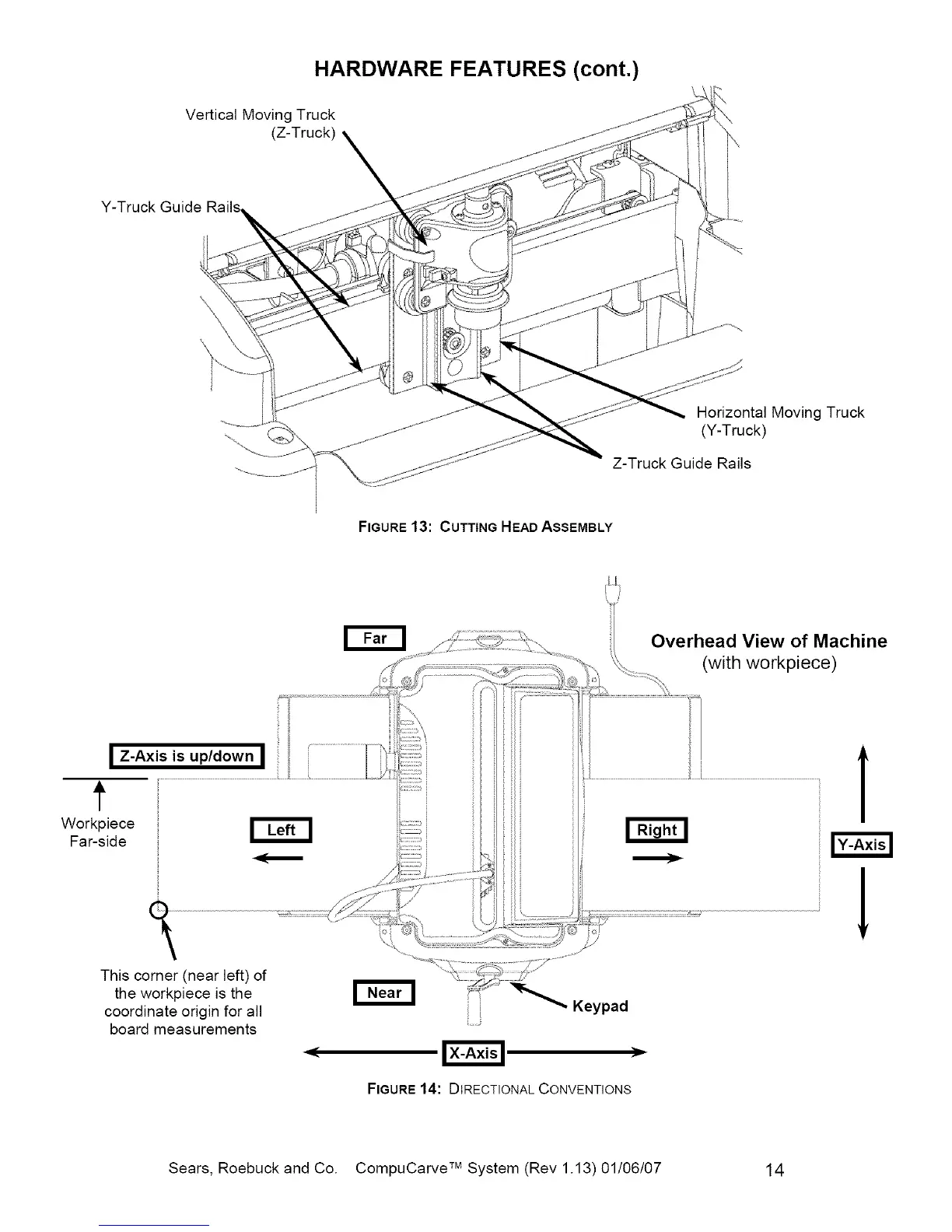

FIGURE13: CUTTING HEAD ASSEMBLY
Overhead View of Machine
(with workpiece)
Z-AxIS IS up/down
f /i_i:i::i:i:i:i:_i
Workpiece _;::**r
t:
Far-side
This corner (near left) of
the workpiece is the
coordinate origin for all
board measurements
...........................
Keypad
)
1
FIGURE14: DIRECTIONAL CONVENTIONS
Sears, Roebuck and Co. CompuCarve TM System (Rev 1.13) 01/06/07 14
