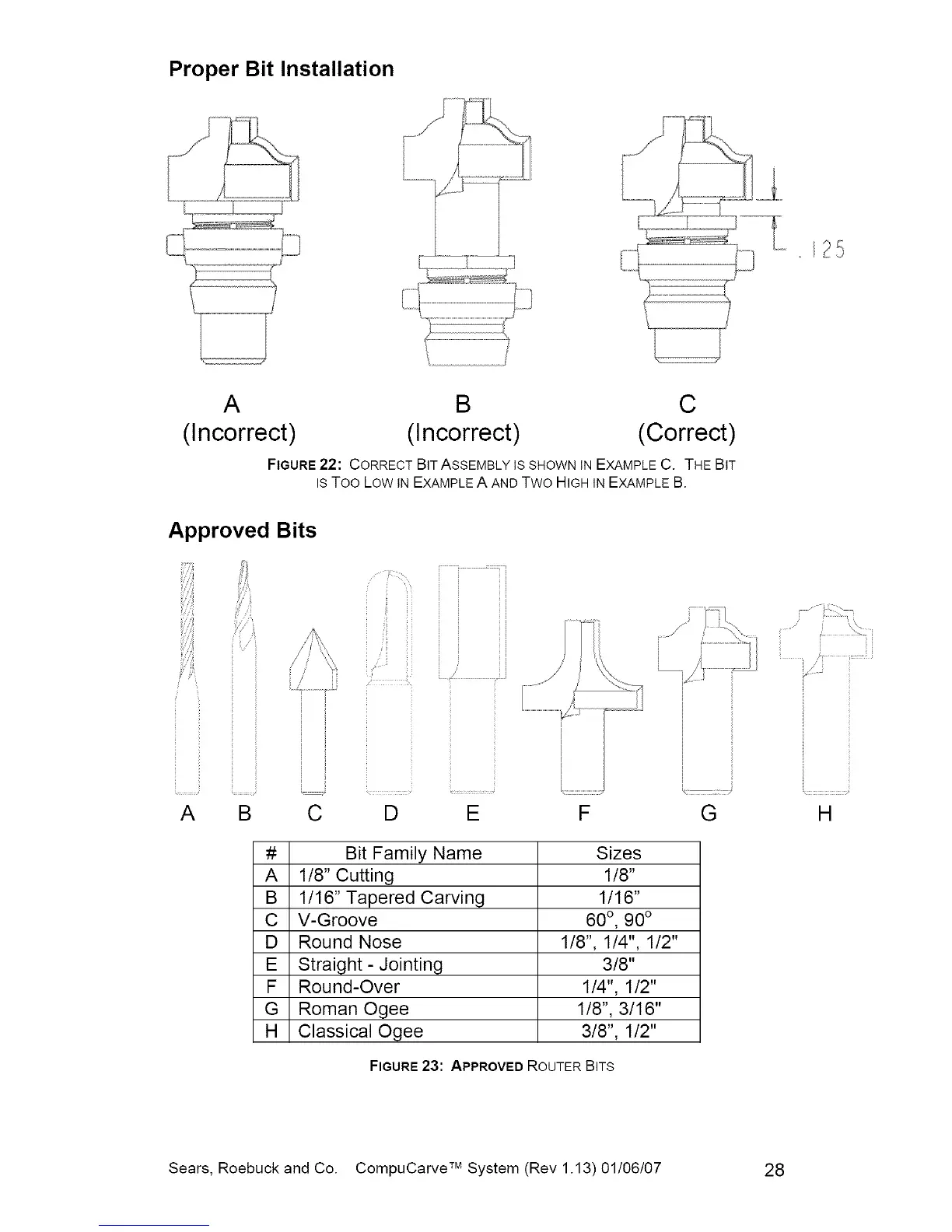

Proper Bit Installation
A B C
(Incorrect) (Incorrect) (Correct)
FIGURE22: CORRECT BIT ASSEMBLY IS SHOWN IN EXAMPLE C. THE BIT
IS TOO LOW IN EXAMPLE A AND TWO HIGH IN EXAMPLE B.
Approved Bits
,ili i l
,ili
D
/ [
S'
k
A E F G H
# Bit Family Name Sizes
A 1/8" Cutting 1/8"
B 1/16" Tapered Carving 1/16"
C V-Groove 60 °, 90°
D Round Nose 1/8", 1/4", 1/2"
E Straight- Jointing 3/8"
F Round-Over 1/4", 1/2"
G Roman Ogee 1/8", 3/16"
H Classical Ogee 3/8", 1/2"
FIGURE23: APPROVED ROUTER BITS
Sears, Roebuck and Co. CompuCarve TM System (Rev 1.13) 01/06/07 28
